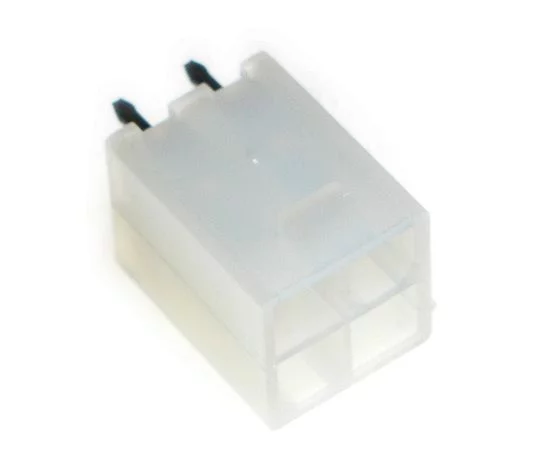

W4505-04PDSBTWR HSM ATX Connector

Symbol Micros: Z KWM4505-04s

15093

Z KWM4505-04s

Contractor Symbol:

Case : Rys.W4505-04S

Datasheet

Add to favourites

Socket; male; 4pin (2x2); straight; pitch: 4,2x5,5mm; THT; with key; dual row; w/o mounting pegs; tined; white color eqiv. MRX566-04

Parameters

Number of pins:	4
Manufacturer:	HSM
Connector:	Socket
Mounting:	THT
Spatial orientation:	Straight
Operating voltage:	250V
Type of connector:	Male

All parameters

Manufacturer:: HSM Manufacturer part number: W4505-04PDSBTWR RoHS Case style: Rys.W4505-04S

In stock:

4015 pcs.

Quantity of pcs.	3+	20+	100+	300+	1000+
Net price (EUR)	0,3343	0,1837	0,1445	0,1340	0,1283

Add to comparison tool Add inquiry (RFQ)

Packaging:
1000/5000 Quantity (multiple: 1)

- +

• Parameters

Number of pins:	4
Manufacturer:	HSM
Connector:	Socket
Mounting:	THT
Spatial orientation:	Straight
Operating voltage:	250V
Type of connector:	Male
Terminal pitch [m]:	4,2mm
