W4505-06PDSBTWR HSM ATX Connector

Symbol Micros: Z KWM4505-06s

15094

Z KWM4505-06s

Contractor Symbol:

Case : Rys.W4505-06S

Datasheet

Technical drawing Add to favourites

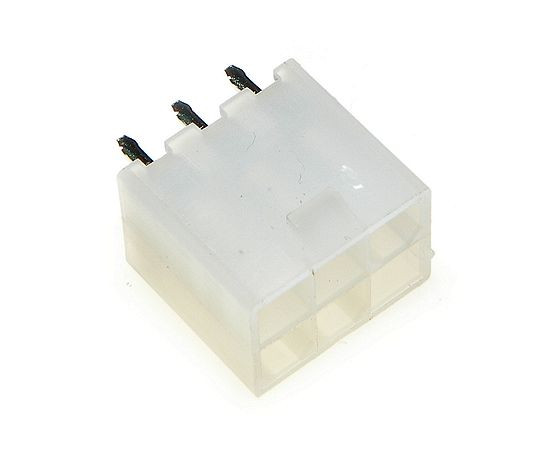

Socket; male; 6pin (2x3); straight; pitch: 4,2x5,5mm; THT; with key; dual row; w/o mounting pegs; tined; white color eqiv. MRX566-06

Parameters

Number of pins:	6
Manufacturer:	HSM
Connector:	Socket
Mounting:	THT
Spatial orientation:	Straight
Operating voltage:	250V
Type of connector:	Male

All parameters

Manufacturer:: HSM. Manufacturer part number: W4505-06PDSBTWR RoHS Case style: Rys.W4505-06S Datasheet

In stock:

1223 pcs.

Quantity of pcs.	3+	20+	100+	500+	2000+
Net price (EUR)	0,3523	0,1948	0,1538	0,1395	0,1351

Add to comparison tool Add inquiry (RFQ)

Packaging:
500/3000 Quantity (multiple: 1)

- +

Manufacturer:: HSM Manufacturer part number: W4505-06PDSBTWR RoHS Case style: Rys.W4505-06S

In stock:

0 pcs.

Quantity of pcs.	3+	20+	100+	500+	2000+
Net price (EUR)	0,3523	0,1948	0,1538	0,1395	0,1351

Add to comparison tool Add inquiry (RFQ)

Packaging:
500/6000 Quantity (multiple: 1)

- +





Add inquiry (RFQ)

Item in delivery

Estimated date:
2026-11-20

Quantity of pcs.: 3000

• Parameters

Number of pins:	6
Manufacturer:	HSM
Connector:	Socket
Mounting:	THT
Spatial orientation:	Straight
Operating voltage:	250V
Type of connector:	Male
Terminal pitch [m]:	4,2mm
