W4505-08PDRBTWR HSM ATX Connector

Symbol Micros: Z KWM4505-08r

15102

Z KWM4505-08r

Contractor Symbol:

Case : Rys.W4505-08R

Datasheet

Technical drawing Add to favourites

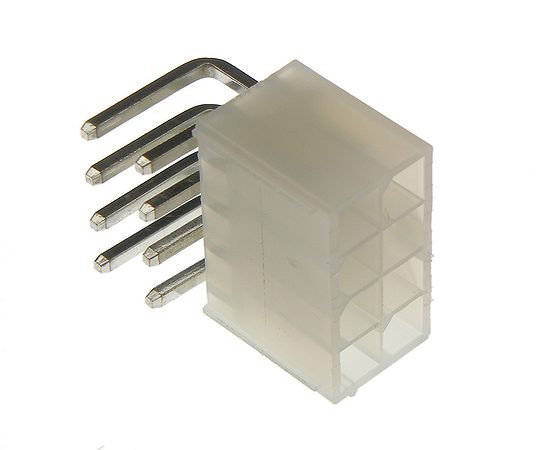

Socket; male; 8pin (2x4); angled; pitch: 4,2mm; THT; with key; dual row; w/o mounting pegs; tined; white color eqiv. MRX569-08

Parameters

Type of pin configuration:	2x4
Number of pins:	8
Connector:	Socket
Manufacturer:	HSM
Spatial orientation:	Angled
Mounting:	THT
Type of connector:	Male

All parameters

Manufacturer:: HSM. Manufacturer part number: W4505-08PDRBTWR RoHS Case style: Rys.W4505-08R

In stock:

2925 pcs.

Quantity of pcs.	2+	10+	50+	200+	500+
Net price (EUR)	0,5401	0,3259	0,2474	0,2236	0,2160

Add to comparison tool Add inquiry (RFQ)

Packaging:
500/4000 Quantity (multiple: 1)

- +

Manufacturer:: HSM Manufacturer part number: W4505-08PDRBTWR RoHS Case style: Rys.W4505-08R Datasheet

In stock:

0 pcs.

Quantity of pcs.	2+	10+	50+	200+	500+
Net price (EUR)	0,5401	0,3259	0,2474	0,2236	0,2160

Add to comparison tool Add inquiry (RFQ)

Packaging:
500/2000 Quantity (multiple: 1)

- +

• Parameters

Type of pin configuration:	2x4
Number of pins:	8
Connector:	Socket
Manufacturer:	HSM
Spatial orientation:	Angled
Mounting:	THT
Type of connector:	Male
