W4505-10PDRBTWR HSM ATX Connector

Symbol Micros: Z KWM4505-10r

15103

Z KWM4505-10r

Contractor Symbol:

Case : Rys.W4505-10R

Datasheet

Technical drawing Add to favourites

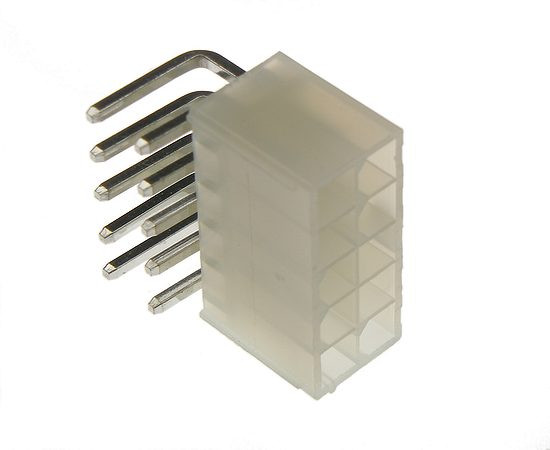

Socket; male; 10pin (2x5); angled; pitch: 4,2mm; THT; with key; dual row; w/o mounting pegs; tined; white color eqiv. MRX569-10

Parameters

Type of pin configuration:	2x5
Number of pins:	10
Connector:	Socket
Manufacturer:	HSM
Spatial orientation:	Angled
Mounting:	THT
Type of connector:	Male

All parameters

Manufacturer:: HSM Manufacturer part number: W4505-10PDRBTWR RoHS Case style: Rys.W4505-10R Datasheet

In stock:

790 pcs.

Quantity of pcs.	2+	10+	50+	200+	500+
Net price (EUR)	0,5829	0,3511	0,2669	0,2411	0,2327

Add to comparison tool Add inquiry (RFQ)

Packaging:
500/2000 Quantity (multiple: 1)

- +





Add inquiry (RFQ)

Item in delivery

Estimated date:
2025-10-15

Quantity of pcs.: 1000

• Parameters

Type of pin configuration:	2x5
Number of pins:	10
Connector:	Socket
Manufacturer:	HSM
Spatial orientation:	Angled
Mounting:	THT
Type of connector:	Male
