W4505-10PDSBTWR HSM ATX Connector

Symbol Micros: Z KWM4505-10s

15096

Z KWM4505-10s

Contractor Symbol:

Case : Rys.W4505-10S

Datasheet

Technical drawing Add to favourites

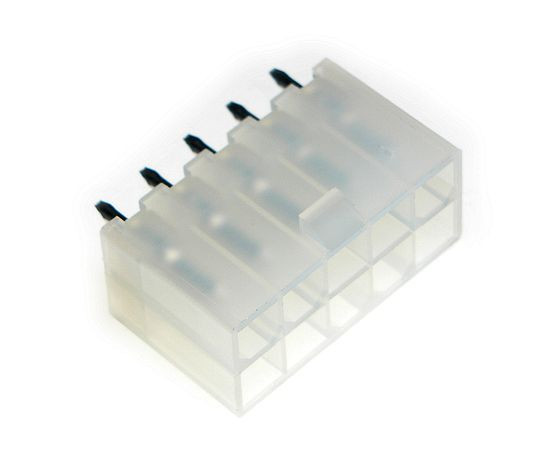

Socket; male; 10pin (2x5); straight; pitch: 4,2x5,5mm; THT; with key; dual row; w/o mounting pegs; tined; white color eqiv. MRX566-10

Parameters

Number of pins:	10
Manufacturer:	HSM
Connector:	Socket
Spatial orientation:	Straight
Mounting:	THT
Operating voltage:	250V
Type of connector:	Male

All parameters

Manufacturer:: HSM. Manufacturer part number: W4505-10PDSBTWR RoHS Case style: Rys.W4505-10S

In stock:

1000 pcs.

Quantity of pcs.	2+	10+	50+	200+	500+
Net price (EUR)	0,4964	0,2983	0,2277	0,2058	0,1988

Add to comparison tool Add inquiry (RFQ)

Packaging:
500 Quantity (multiple: 1)

- +

Manufacturer:: HSM Manufacturer part number: W4505-10PDSBTWR RoHS Case style: Rys.W4505-10S

In stock:

1025 pcs.

Quantity of pcs.	2+	10+	50+	200+	500+
Net price (EUR)	0,4964	0,2983	0,2277	0,2058	0,1988

Add to comparison tool Add inquiry (RFQ)

Packaging:
500 Quantity (multiple: 1)

- +

• Parameters

Number of pins:	10
Manufacturer:	HSM
Connector:	Socket
Spatial orientation:	Straight
Mounting:	THT
Operating voltage:	250V
Type of connector:	Male
Terminal pitch [mm]:	4,2mm
