W4505-12PDRBTWR HSM ATX Connector

Symbol Micros: Z KWM4505-12r

15104

Z KWM4505-12r

Contractor Symbol:

Case : Rys.W4505-12R

Datasheet

Technical drawing Add to favourites

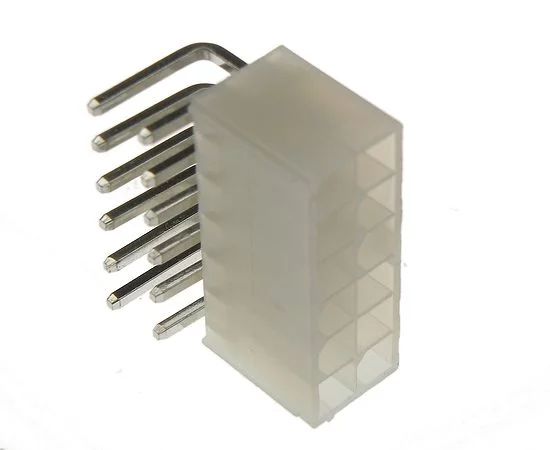

Socket; male; 12pin (2x6); angled; pitch: 4,2mm; THT; with key; dual row; w/o mounting pegs; tined; white color eqiv. MRX569-12

Parameters

Number of pins:	12
Manufacturer:	HSM
Connector:	Socket
Mounting:	THT
Spatial orientation:	Angled
Operating voltage:	250V
Type of connector:	Male

All parameters

Manufacturer:: HSM. Manufacturer part number: W4505-12PDRBTWR RoHS Case style: Rys.W4505-12R

In stock:

5000 pcs.

Quantity of pcs.	2+	10+	50+	200+	500+
Net price (EUR)	0,5784	0,3644	0,2868	0,2610	0,2516

Add to comparison tool Add inquiry (RFQ)

Packaging:
500 Quantity (multiple: 1)

- +

Manufacturer:: HSM Manufacturer part number: W4505-12PDRBTWR RoHS Case style: Rys.W4505-12R Datasheet

In stock:

251 pcs.

Quantity of pcs.	2+	10+	50+	200+	500+
Net price (EUR)	0,5784	0,3644	0,2868	0,2610	0,2516

Add to comparison tool Add inquiry (RFQ)

Packaging:
500/3000 Quantity (multiple: 1)

- +

• Parameters

Number of pins:	12
Manufacturer:	HSM
Connector:	Socket
Mounting:	THT
Spatial orientation:	Angled
Operating voltage:	250V
Type of connector:	Male
Terminal pitch [m]:	4,2mm
