W4505-12PDSBTWR HSM ATX Connector

Symbol Micros: Z KWM4505-12s

15097

Z KWM4505-12s

Contractor Symbol:

Case : Rys.W4505-12S

Datasheet

Technical drawing Add to favourites

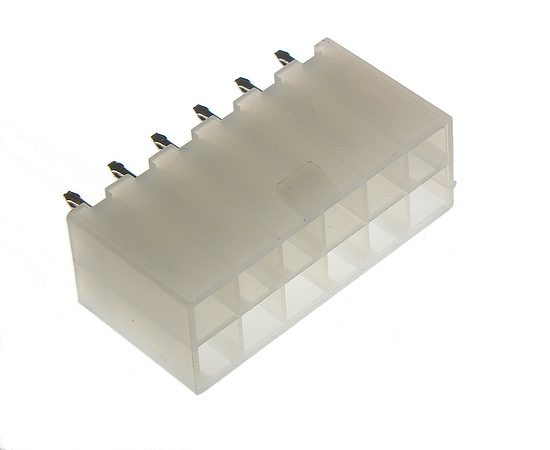

Socket; male; 12pin (2x6); straight; pitch: 4,2x5,5mm; THT; with key; dual row; w/o mounting pegs; tined; white color eqiv. MRX566-12

Parameters

Number of pins:	12
Manufacturer:	HSM
Connector:	Socket
Spatial orientation:	Straight
Mounting:	THT
Operating voltage:	250V
Type of connector:	Male

All parameters

Manufacturer:: JVT Manufacturer part number: JVT1150WN2-2X06SN-D RoHS Case style: Rys.W4505-12S

In stock:

900 pcs.

Quantity of pcs.	3+	20+	100+	500+	2000+
Net price (EUR)	0,4122	0,2277	0,1803	0,1637	0,1585

Add to comparison tool Add inquiry (RFQ)

Packaging:
500 Quantity (multiple: 1)

- +

Manufacturer:: HSM Manufacturer part number: W4505-12PDSBTWR RoHS Case style: Rys.W4505-12S

In stock:

95 pcs.

Quantity of pcs.	2+	10+	50+	200+	500+
Net price (EUR)	0,5624	0,3393	0,2596	0,2323	0,2252

Add to comparison tool Add inquiry (RFQ)

Packaging:
500 Quantity (multiple: 1)

- +

• Parameters

Number of pins:	12
Manufacturer:	HSM
Connector:	Socket
Spatial orientation:	Straight
Mounting:	THT
Operating voltage:	250V
Type of connector:	Male
Terminal pitch [mm]:	4,2mm
