W4505-16PDRBTWR HSM ATX Connector

Symbol Micros: Z KWM4505-16r

17663

Z KWM4505-16r

Contractor Symbol:

Case : Rys.W4505-16R

Datasheet

Technical drawing Add to favourites

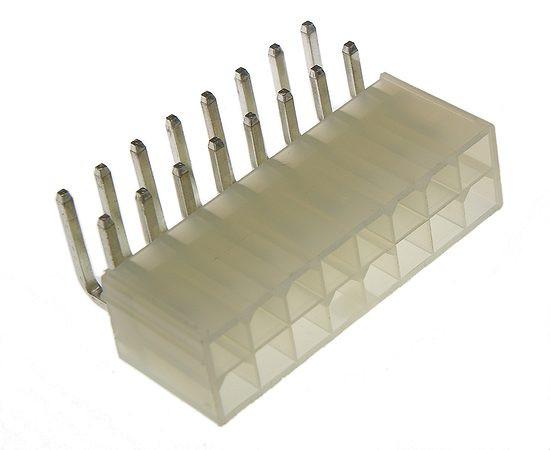

Socket; male; 16pin (2x8); angled; pitch: 4,2mm; THT; with key; dual row; w/o mounting pegs; tined; white color eqiv. MRX569-16

Parameters

Type of pin configuration:	2x8
Number of pins:	16
Connector:	Socket
Manufacturer:	HSM
Spatial orientation:	Angled
Mounting:	THT
Type of connector:	Male

All parameters

Manufacturer:: HSM Manufacturer part number: W4505-16PDRBTWR RoHS Case style: Rys.W4505-16R Datasheet

In stock:

0 pcs.

Quantity of pcs.	2+	10+	50+	250+	1000+
Net price (EUR)	0,8825	0,5595	0,4424	0,3979	0,3839

Add to comparison tool Add inquiry (RFQ)

Packaging:
250/1000 Quantity (multiple: 1)

- +





Add inquiry (RFQ)

Item in delivery

Estimated date:
2025-10-15

Quantity of pcs.: 500

• Parameters

Type of pin configuration:	2x8
Number of pins:	16
Connector:	Socket
Manufacturer:	HSM
Spatial orientation:	Angled
Mounting:	THT
Type of connector:	Male
