W4505-24PDSBTWR HSM ATX Connector

Symbol Micros: Z KWM4505-24s

21260

Z KWM4505-24s

Contractor Symbol:

Case : Rys.W4505-24S

Datasheet

Add to favourites

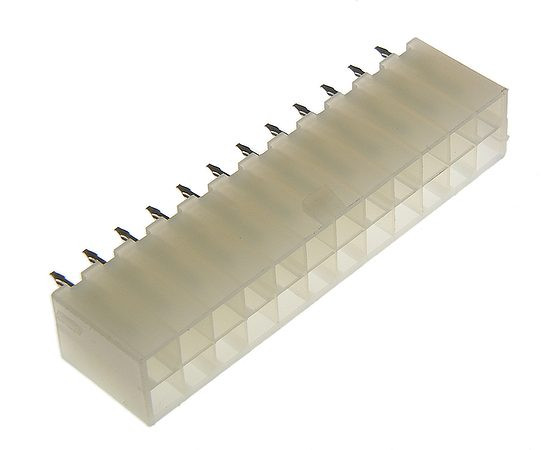

Socket; male; 24pin (2x12); straight; pitch: 4,2x5,5mm; THT; with key; dual row; w/o mounting pegs; tined; white color eqiv. MRX566-24

Parameters

Number of pins:	24
Manufacturer:	HSM
Connector:	Socket
Mounting:	THT
Spatial orientation:	Straight
Operating voltage:	250V
Type of connector:	Male

All parameters

Manufacturer:: HSM. Manufacturer part number: W4505-24PDSBTWR RoHS Case style: Rys.W4505-24S

In stock:

1000 pcs.

Quantity of pcs.	2+	10+	50+	250+	1000+
Net price (EUR)	0,8064	0,5102	0,4020	0,3644	0,3503

Add to comparison tool Add inquiry (RFQ)

Packaging:
250/1000 Quantity (multiple: 1)

- +

Manufacturer:: HSM Manufacturer part number: W4505-24PDSBTWR RoHS Case style: Rys.W4505-24S

In stock:

839 pcs.

Quantity of pcs.	2+	10+	50+	250+	1000+
Net price (EUR)	0,8064	0,5102	0,4020	0,3644	0,3503

Add to comparison tool Add inquiry (RFQ)

Packaging:
250 Quantity (multiple: 1)

- +

• Parameters

Number of pins:	24
Manufacturer:	HSM
Connector:	Socket
Mounting:	THT
Spatial orientation:	Straight
Operating voltage:	250V
Type of connector:	Male
Terminal pitch [m]:	4,2mm
