DS1022-1x5RDF14-B CONNFLY Pin header

Symbol Micros: Z L1x05R

20052

Z L1x05R

Contractor Symbol:

Case : Rys.L1x05R

Datasheet

Technical drawing Add to favourites

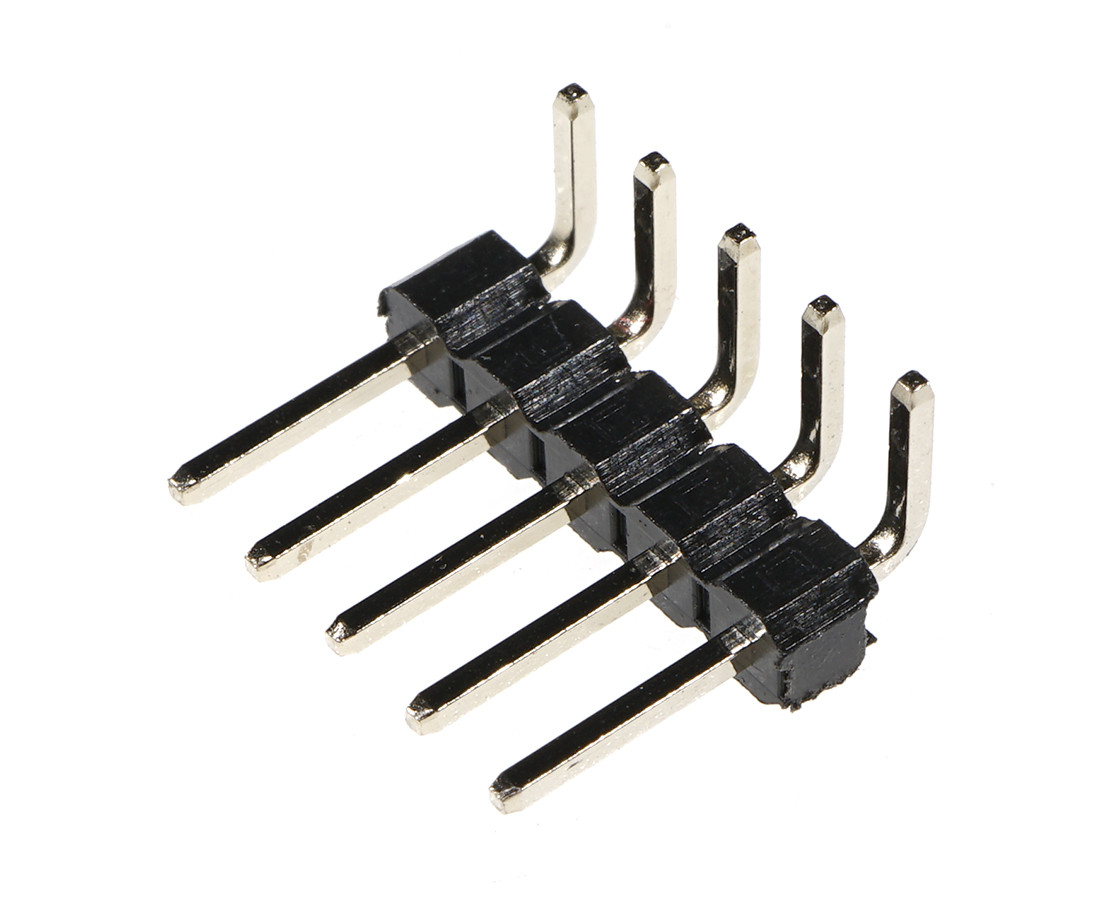

male; single row; 1x5pin, angled, p.2,54mm, PCB, gold contact

Parameters

Type of pin configuration:	1x05
Number of pins:	5
Type of connector:	Plug
Connector:	Pin strip
Mounting:	THT
Spatial orientation:	Angled
Terminal pitch [mm]:	2,54mm

All parameters

Manufacturer:: CONNFLY ELECTRONIC Manufacturer part number: DS1022-1x5RDF11-B RoHS Case style: Rys.L1x05R Datasheet

In stock:

0 pcs.

Quantity of pcs.	5+	20+	100+	500+	2000+
Net price (EUR)	0,1257	0,0574	0,0311	0,0232	0,0210

Add to comparison tool Add inquiry (RFQ)

Packaging:
500/10000/40000 Quantity (multiple: 1)

- +

Manufacturer:: CONNFLY ELECTRONIC Manufacturer part number: DS1022-1*5RDF14-B RoHS Case style: Rys.L1x05R Datasheet

In stock:

1487 pcs.

Quantity of pcs.	10+	50+	100+	500+	4000+
Net price (EUR)	0,0915	0,0361	0,0268	0,0172	0,0141

Add to comparison tool Add inquiry (RFQ)

Packaging:
500/2000 Quantity (multiple: 10)

- +

Manufacturer:: CONNFLY ELECTRONIC Manufacturer part number: DS1022-1*5RDF14-B RoHS Case style: Rys.L1x05R Datasheet

In stock:

30000 pcs.

Quantity of pcs.	10+	50+	200+	1000+	5000+
Net price (EUR)	0,0915	0,0361	0,0212	0,0156	0,0139

Add to comparison tool Add inquiry (RFQ)

Packaging:
1000 Quantity (multiple: 10)

- +

• Parameters

Type of pin configuration:	1x05
Number of pins:	5
Type of connector:	Plug
Connector:	Pin strip
Mounting:	THT
Spatial orientation:	Angled
Terminal pitch [mm]:	2,54mm
