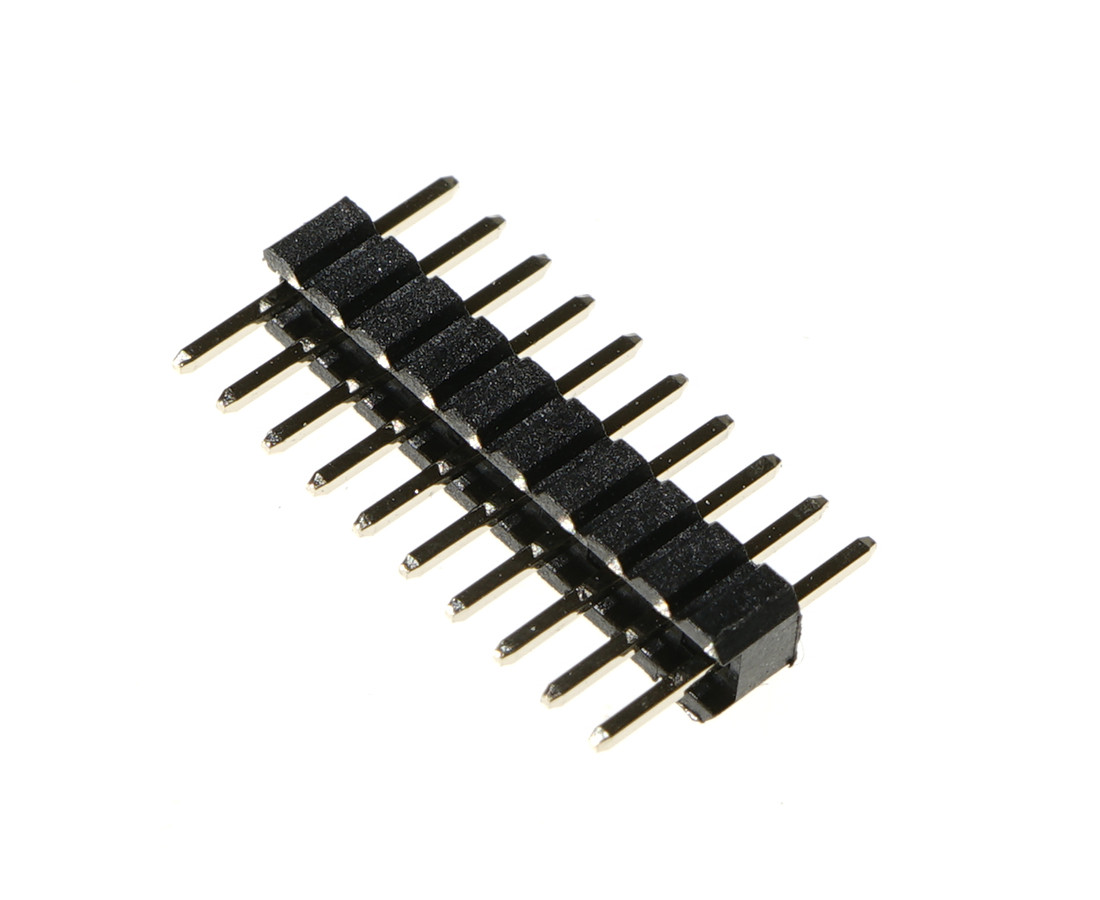

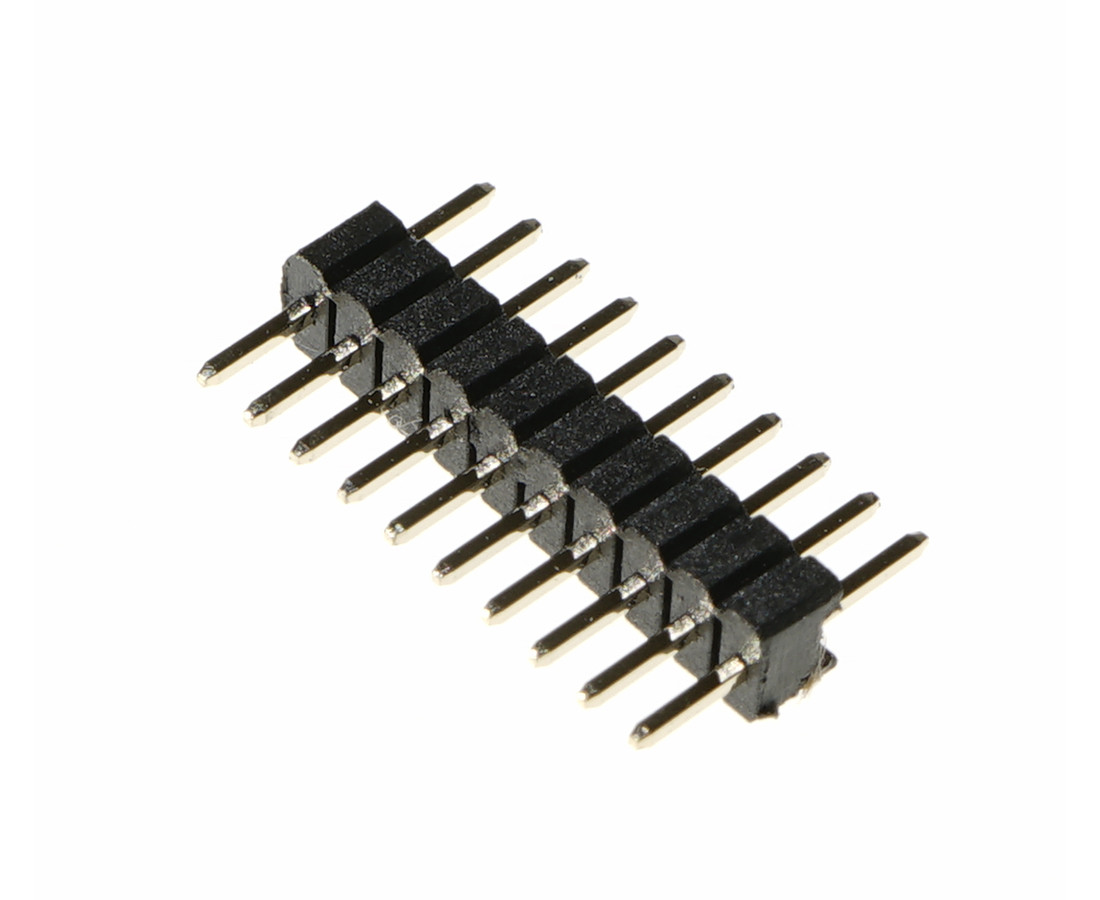

DS1031-01-1x10P8BV31-3A CONNFLY Pin header single row

Symbol Micros: Z L1x10S 1.27-H3T1

529729

Z L1x10S 1.27-H3T1

Contractor Symbol:

Case : Rys.L1x10S 1.27-H3T1

Datasheet

Technical drawing Add to favourites

1x10pin, straight, PCB, gold contact, p.1.27mm h=7.2mm; housing height 2.0mm

Parameters

Type of pin configuration:	1x10
Number of pins:	10
Connector:	Pin strip
Mounting:	THT
Spatial orientation:	Straight
Type of connector:	Male
Terminal pitch [m]:	1,27mm

All parameters

Manufacturer:: CONNFLY ELECTRONIC Manufacturer part number: DS1031-01-1x10P8BV31-3A RoHS Case style: Rys.L1x10S 1.27-H3T1 Datasheet

In stock:

499 pcs.

Quantity of pcs.	3+	20+	100+	500+	2000+
Net price (EUR)	0,3216	0,1713	0,1333	0,1206	0,1167

Add to comparison tool Add inquiry (RFQ)

Packaging:
500 Quantity (multiple: 1)

- +

• Parameters

Type of pin configuration:	1x10
Number of pins:	10
Connector:	Pin strip
Mounting:	THT
Spatial orientation:	Straight
Type of connector:	Male
Terminal pitch [m]:	1,27mm
