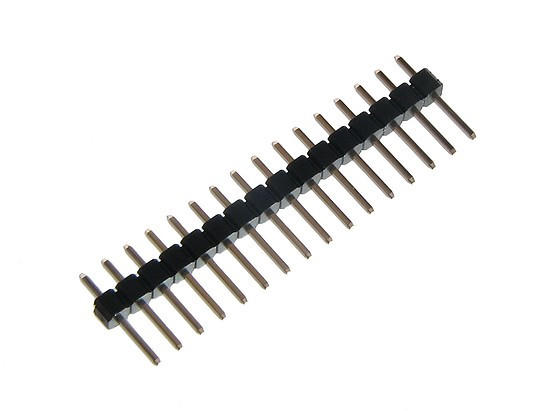

DS1021-1x16SF11-B CONNFLY Pin header

Symbol Micros: Z L1x16S

5554

Z L1x16S

Contractor Symbol:

Case : Rys.L1x16S

Datasheet

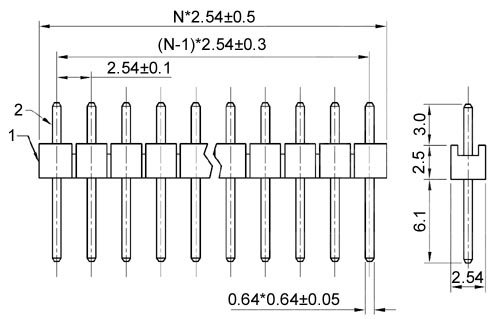

Technical drawing Add to favourites

male; single row; 1x16pin, straight, p.2,54mm, PCB, gold contact; eqiv. ZL201-16G

Parameters

Type of pin configuration:	1x16
Number of pins:	16
Type of connector:	Plug
Connector:	Pin strip
Mounting:	THT
Spatial orientation:	Straight
Terminal pitch [m]:	2,54mm

All parameters

Manufacturer:: CONNFLY ELECTRONIC Manufacturer part number: DS1021-1*16SF11-B RoHS Case style: Rys.L1x16S

In stock:

1710 pcs.

Quantity of pcs.	5+	20+	100+	400+	2400+
Net price (EUR)	0,1974	0,1000	0,0604	0,0488	0,0439

Add to comparison tool Add inquiry (RFQ)

Packaging:
400 Quantity (multiple: 1)

- +

Manufacturer:: CONNFLY ELECTRONIC Manufacturer part number: DS1021-1x16SF11-B Case style: Rys.L1x16S

External warehouse:

42400 pcs.

Quantity of pcs.	400+ (Please wait for the order confirmation)
Net price (EUR)	0,0439

Add to comparison tool Add inquiry (RFQ)

Packaging:
400

Place an order

Delivery within 4-7 business days.
Minimum order amount
must exceed 40 Euro.





Add inquiry (RFQ)

Item in delivery

Estimated date:
2026-06-07

Quantity of pcs.: 2400

• Parameters

Type of pin configuration:	1x16
Number of pins:	16
Type of connector:	Plug
Connector:	Pin strip
Mounting:	THT
Spatial orientation:	Straight
Terminal pitch [m]:	2,54mm
