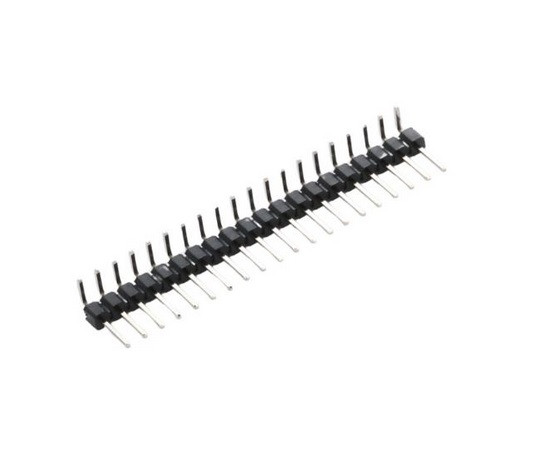

DS1022-1x20RDF11-B CONNFLY Pin header

Symbol Micros: Z L1x20RN

36079

Z L1x20RN

Contractor Symbol:

Case : Rys.L1x20RN

Datasheet

Add to favourites

male; single row; 1x20pin, angled (low profile), p.2,54mm, PCB, gold contact;

Parameters

Number of pins:	1x20
Type:	Plug
Connector:	Pin strip
Mounting:	For printing
Spatial orientation:	Angled
Terminal pitch:	2,54mm

All parameters

Manufacturer:: CONNFLY ELECTRONIC Manufacturer part number: DS1022-1x20RDF11-B RoHS Case style: Rys.L1x20RN Datasheet

In stock:

400 pcs.

Quantity of pcs.	5+	30+	200+	400+	2000+
Net price (EUR)	0,2599	0,1125	0,0699	0,0640	0,0579

Add to comparison tool Add inquiry (RFQ)

Packaging:
200/400 Quantity (multiple: 1)

- +

Manufacturer:: CONNFLY ELECTRONIC Manufacturer part number: DS1022-1x20RDF11-B Case style: Rys.L1x20RN

External warehouse:

13800 pcs.

Quantity of pcs.	200+ (Need a significantly larger quantity? Ask for price).
Net price (EUR)	0,0579

Add to comparison tool Add inquiry (RFQ)

Packaging:
200

Place an order

Delivery within 4-7 business days.
Minimum order amount
must exceed 20 Euro.

• Parameters

Number of pins:	1x20
Type:	Plug
Connector:	Pin strip
Mounting:	For printing
Spatial orientation:	Angled
Terminal pitch:	2,54mm
