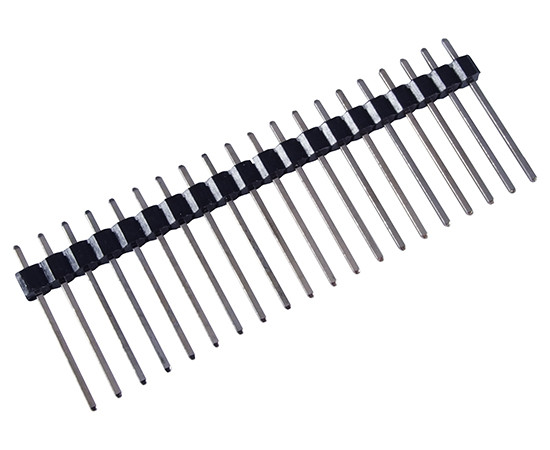

DS1021-1x20SF15-B CONNFLY Pin header

Symbol Micros: Z L1x20S18

84737

Z L1x20S18

Contractor Symbol:

Case : Rys.L1x20S18

Datasheet

Technical drawing Add to favourites

male; single row; 1x20pin, straight, p.2,54mm, PCB, gold contact, h=18mm

Parameters

Number of pins:	1x20
Type:	Plug
Connector:	Pin strip
Mounting:	THT
Spatial orientation:	Straight
Terminal pitch [m]:	2,54mm

All parameters

Manufacturer:: CONNFLY ELECTRONIC Manufacturer part number: DS1021-1*20SF15-B RoHS Case style: Rys.L1x20S18

In stock:

0 pcs.

Quantity of pcs.	5+	30+	200+	400+	2000+
Net price (EUR)	0,2432	0,1178	0,0807	0,0753	0,0697

Add to comparison tool Add inquiry (RFQ)

Packaging:
200/400 Quantity (multiple: 1)

- +

Manufacturer:: CONNFLY ELECTRONIC Manufacturer part number: DS1021-1x20SF15-B Case style: Rys.L1x20S18

External warehouse:

2400 pcs.

Quantity of pcs.	200+ (Please wait for the order confirmation)
Net price (EUR)	0,0697

Add to comparison tool Add inquiry (RFQ)

Packaging:
200

Place an order

Delivery within 4-7 business days.
Minimum order amount
must exceed 40 Euro.

• Parameters

Number of pins:	1x20
Type:	Plug
Connector:	Pin strip
Mounting:	THT
Spatial orientation:	Straight
Terminal pitch [m]:	2,54mm
