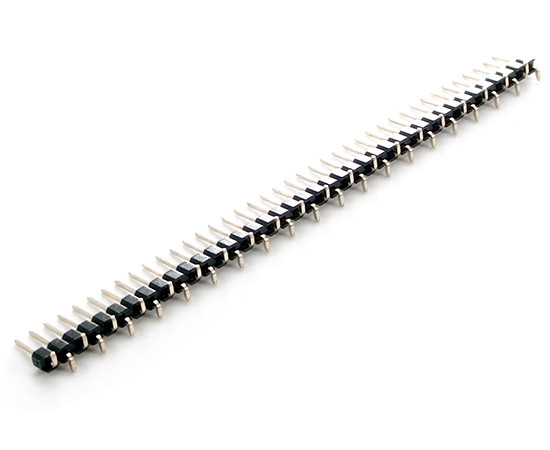

CH-254-1-40P-M-GO-A CONNFLY Pin header

Symbol Micros: Z L1x40 SMD

16734

Z L1x40 SMD

Contractor Symbol:

Case : Rys.L1x40SMD

Datasheet

Add to favourites

male; single row; 1x40pin, straight, p.2,54mm, SMD, gold contact;type 1

Parameters

Number of pins:	1x40
Type:	Plug
Connector:	Pin strip
Mounting:	SMD
Spatial orientation:	Straight
Terminal pitch:	2,54mm

All parameters

Manufacturer:: CONNECTAR Manufacturer part number: CH-254-1-40P-M-GO-A RoHS Case style: Rys.L1x40SMD Datasheet

In stock:

143 pcs.

Quantity of pcs.	3+	10+	50+	200+	1000+
Net price (EUR)	0,4259	0,2800	0,2005	0,1753	0,1642

Add to comparison tool Add inquiry (RFQ)

Packaging:
200/4000 Quantity (multiple: 1)

- +





Add inquiry (RFQ)

Item in delivery

Estimated date:
2025-10-10

Quantity of pcs.: 2000

• Parameters

Number of pins:	1x40
Type:	Plug
Connector:	Pin strip
Mounting:	SMD
Spatial orientation:	Straight
Terminal pitch:	2,54mm
