DS1022-1x40RDF119-B CONNFLY Pin header

Symbol Micros: Z L1x40R

5558

Z L1x40R

Contractor Symbol:

Case : Rys.L1x40R

Datasheet

Technical drawing Add to favourites

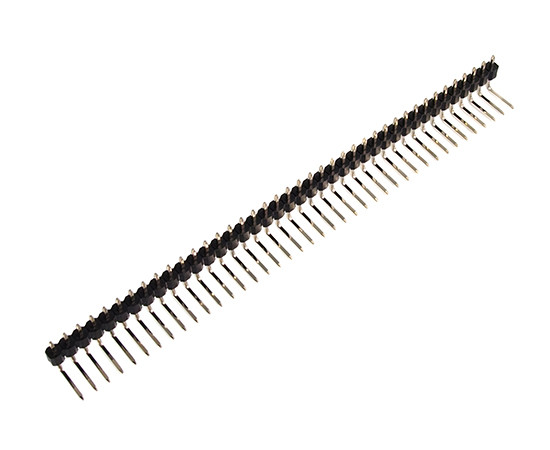

male; single row; 1x40pin, angled, p.2,54mm, PCB, gold contact

Parameters

Type of pin configuration:	1x40
Number of pins:	40
Type of connector:	Plug
Connector:	Pin strip
Mounting:	THT
Spatial orientation:	Angled
Terminal pitch [m]:	2,54mm

All parameters

Manufacturer:: CONNECTAR Manufacturer part number: CH254-PH-1-40-RU-GO-A RoHS Case style: Rys.L1x40R Datasheet

In stock:

167 pcs.

Quantity of pcs.	3+	10+	20+	50+	167+
Net price (EUR)	0,2592	0,1605	0,1313	0,1086	0,0940

Add to comparison tool Add inquiry (RFQ)

Packaging:
167 Quantity (multiple: 1)

- +

Manufacturer:: CONNFLY ELECTRONIC Manufacturer part number: DS1022-1*40RDF119-B RoHS Case style: Rys.L1x40R Datasheet

In stock:

2188 pcs.

Quantity of pcs.	3+	10+	50+	200+	1600+
Net price (EUR)	0,2592	0,1654	0,1164	0,1013	0,0940

Add to comparison tool Add inquiry (RFQ)

Packaging:
200/1600/3200 Quantity (multiple: 1)

- +





Add inquiry (RFQ)

Item in delivery

Estimated date:
2026-07-01

Quantity of pcs.: 3200

• Parameters

Type of pin configuration:	1x40
Number of pins:	40
Type of connector:	Plug
Connector:	Pin strip
Mounting:	THT
Spatial orientation:	Angled
Terminal pitch [m]:	2,54mm
