DS1025-02-1x40P8BR1-B CONNFLY Pin header

Symbol Micros: Z L1x40R 2.0

21062

Z L1x40R 2.0

Contractor Symbol:

Case : Rys.L1x40R 2.0

Datasheet

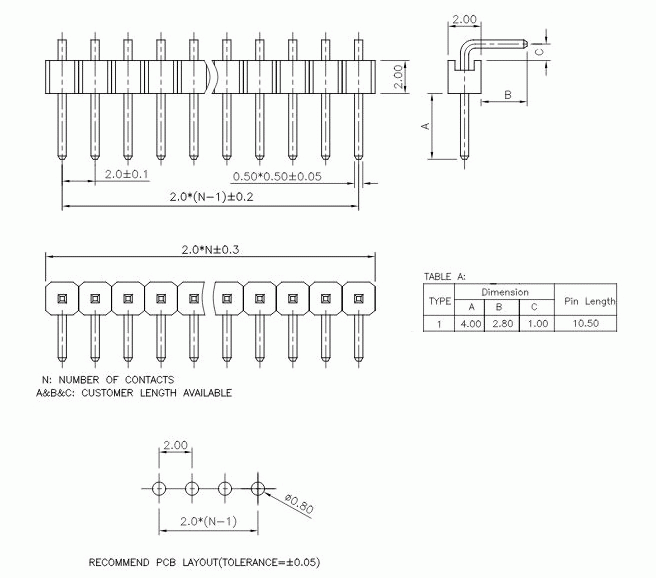

Technical drawing Add to favourites

male; single row; 1x40pin; angled; p.2,00mm, PCB, gold contact; equivalent: PLMS40R-LF, ZL310-40P

Parameters

Number of pins:	1x40
Connector:	Pin strip
Mounting:	For printing
Type of connector:	Male
Spatial orientation:	Angled
Terminal pitch:	2,0mm

All parameters

Manufacturer:: CONNFLY ELECTRONIC Manufacturer part number: DS1025-02-1*40P8BR1-B RoHS Case style: Rys.L1x40R 2.0 Datasheet

In stock:

4600 pcs.

Quantity of pcs.	3+	10+	50+	200+	1000+
Net price (EUR)	0,3690	0,2413	0,1732	0,1514	0,1419

Add to comparison tool Add inquiry (RFQ)

Packaging:
200 Quantity (multiple: 1)

- +

Manufacturer:: CONNFLY ELECTRONIC Manufacturer part number: DS1025-02-1*40P8BR1-B RoHS Case style: Rys.L1x40R 2.0 Datasheet

In stock:

25 pcs.

Quantity of pcs.	3+	10+	20+	40+	100+
Net price (EUR)	0,3690	0,2413	0,2032	0,1788	0,1599

Add to comparison tool Add inquiry (RFQ)

Packaging:
100 Quantity (multiple: 1)

- +

Manufacturer:: CONNFLY ELECTRONIC Manufacturer part number: DS1025-02-1x40P8BR1-B Case style: Rys.L1x40R 2.0

External warehouse:

7200 pcs.

Quantity of pcs.	200+ (Need a significantly larger quantity? Ask for price).
Net price (EUR)	0,1599

Add to comparison tool Add inquiry (RFQ)

Packaging:
200

Place an order

Delivery within 4-7 business days.
Minimum order amount
must exceed 20 Euro.

• Parameters

Number of pins:	1x40
Connector:	Pin strip
Mounting:	For printing
Type of connector:	Male
Spatial orientation:	Angled
Terminal pitch:	2,0mm
