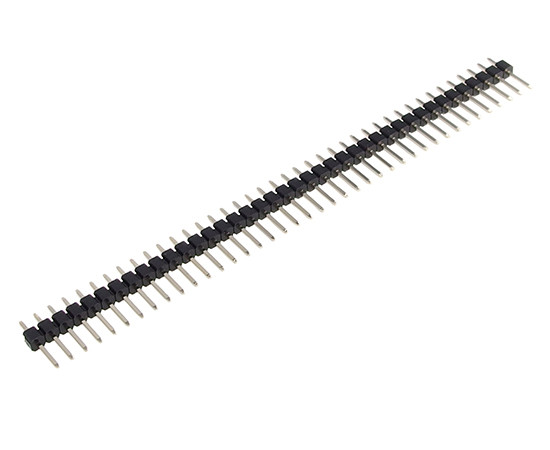

CH-254-PH-1-40-254-S-115-G0-A CONNECTAR Pin header

Symbol Micros: Z L1x40S

4377

Z L1x40S

Contractor Symbol:

Case : Rys.L1x40S

Datasheet

Technical drawing Add to favourites

male; single row; 1x40pin; straight; p.2,54mm, PCB, gold contact; eqiv. PLS-40S, ZL201-40G

Parameters

Number of pins:	1x40
Type:	Plug
Connector:	Pin strip
Mounting:	THT
Spatial orientation:	Straight
Terminal pitch [m]:	2,54mm

All parameters

Manufacturer:: CONNECTAR Manufacturer part number: CH-254-PH-1-40-254-S-115-G0-A RoHS Case style: Rys.L1x40S Datasheet

In stock:

76085 pcs.

Quantity of pcs.	5+	20+	100+	200+	1000+
Net price (EUR)	0,2736	0,1494	0,0980	0,0885	0,0780

Add to comparison tool Add inquiry (RFQ)

Packaging:
200/5000/10000 Quantity (multiple: 1)

- +

Manufacturer:: CONNFLY ELECTRONIC Manufacturer part number: DS1021-1x40SF11-B Case style: Rys.L1x40S

External warehouse:

3000 pcs.

Quantity of pcs.	200+ (Need a significantly larger quantity? Ask for price).
Net price (EUR)	0,0780

Add to comparison tool Add inquiry (RFQ)

Packaging:
200

Place an order

Delivery within 4-7 business days.
Minimum order amount
must exceed 20 Euro.





Add inquiry (RFQ)

Item in delivery

Estimated date:
2026-03-10

Quantity of pcs.: 30000

• Parameters

Number of pins:	1x40
Type:	Plug
Connector:	Pin strip
Mounting:	THT
Spatial orientation:	Straight
Terminal pitch [m]:	2,54mm
