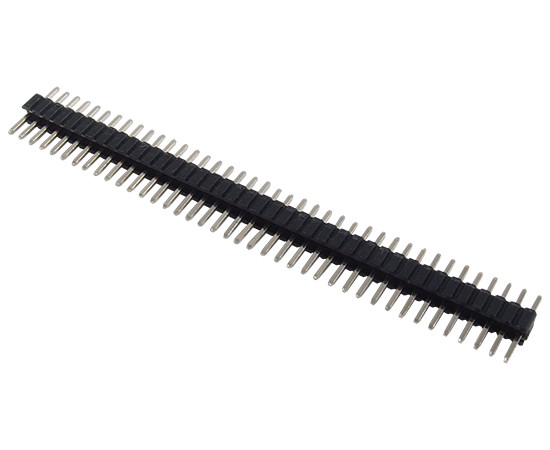

CH-127-PH-1-40-20-S-65-G-B CONNECTAR Pin header single row

Symbol Micros: Z L1x40S 1.27-H3T2

121343

Z L1x40S 1.27-H3T2

Contractor Symbol:

Case : Rys.L1x40S 1.27-H3T2

Datasheet

Technical drawing Add to favourites

1x40pin, straight, PCB, gold contact, p.1.27mm h=6.5mm; housing height 2.0mm

Parameters

Type of pin configuration:	1x40
Number of pins:	40
Connector:	Pin strip
Mounting:	THT
Spatial orientation:	Straight
Type of connector:	Male
Terminal pitch [m]:	1,27mm

All parameters

Manufacturer:: CONNECTAR Manufacturer part number: CH-127-PH-1-40-20-S-65-GO-B RoHS Case style: Rys.L1x40S 1.27-H3T2 Datasheet

In stock:

1969 pcs.

Quantity of pcs.	3+	10+	50+	200+	1000+
Net price (EUR)	0,3944	0,2574	0,1847	0,1615	0,1514

Add to comparison tool Add inquiry (RFQ)

Packaging:
200/12000 Quantity (multiple: 1)

- +

• Parameters

Type of pin configuration:	1x40
Number of pins:	40
Connector:	Pin strip
Mounting:	THT
Spatial orientation:	Straight
Type of connector:	Male
Terminal pitch [m]:	1,27mm
