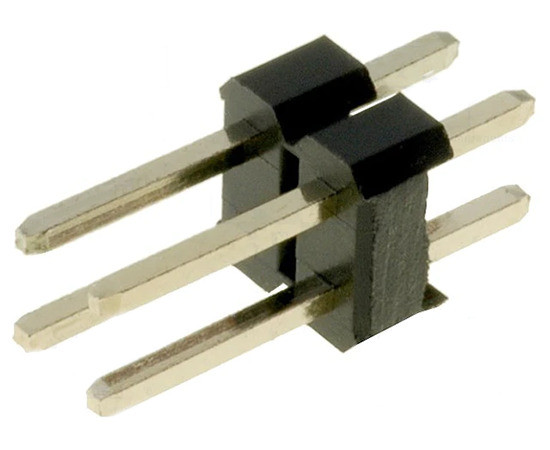

DS1021-2x2SF11-B CONNFLY Pin header

Symbol Micros: Z L2x02S

244085

Z L2x02S

Contractor Symbol:

Case : Rys.L2x02S

Datasheet

Technical drawing Add to favourites

male; dual row; 2x02pin, straight, p.2,54mm, PCB, gold contact; eqiv. ZL202-4G

Parameters

Type of pin configuration:	2x02
Number of pins:	4
Type of connector:	Plug
Connector:	Pin strip
Mounting:	THT
Spatial orientation:	Straight
Terminal pitch [m]:	2,54mm

All parameters

Manufacturer:: CONNFLY ELECTRONIC Manufacturer part number: DS1021-2*2SF11-B RoHS Case style: Rys.L2x02S Datasheet

In stock:

4820 pcs.

Quantity of pcs.	10+	50+	200+	1000+	5000+
Net price (EUR)	0,0789	0,0313	0,0184	0,0135	0,0121

Add to comparison tool Add inquiry (RFQ)

Packaging:
1000/5000 Quantity (multiple: 10)

- +

• Parameters

Type of pin configuration:	2x02
Number of pins:	4
Type of connector:	Plug
Connector:	Pin strip
Mounting:	THT
Spatial orientation:	Straight
Terminal pitch [m]:	2,54mm
