CH-254-PH-2-3-S-105-GO-A(PC=2) CONNECTAR Pin header

Symbol Micros: Z L2x03S

107262

Z L2x03S

Contractor Symbol:

Case : Rys.L2x03S

Datasheet

Technical drawing Add to favourites

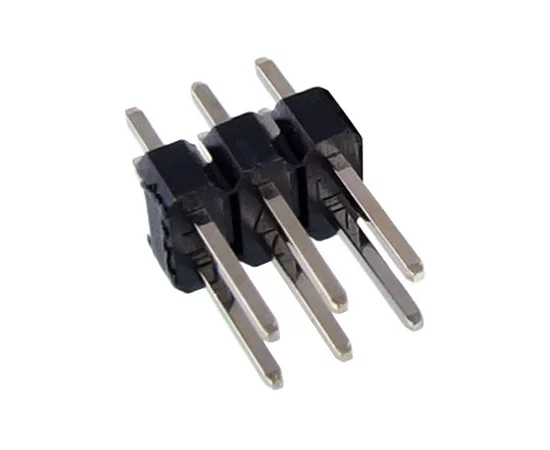

male; dual row; 2x03pin, straight, p.2,54mm, PCB, gold contact; eqiv. ZL202-6G

Parameters

Type of pin configuration:	2x03
Number of pins:	6
Type of connector:	Plug
Connector:	Pin strip
Mounting:	THT
Spatial orientation:	Straight
Terminal pitch [m]:	2,54mm

All parameters

Manufacturer:: CONNECTAR Manufacturer part number: CH-254-PH-2-3-S-105-GO-A(PC=2) RoHS Case style: Rys.L2x03S Datasheet

In stock:

25612 pcs.

Quantity of pcs.	10+	50+	300+	2000+	10000+
Net price (EUR)	0,1068	0,0425	0,0227	0,0175	0,0164

Add to comparison tool Add inquiry (RFQ)

Packaging:
2000/24000 Quantity (multiple: 10)

- +

Manufacturer:: CONNFLY ELECTRONIC Manufacturer part number: DS1021-2x3SF11-B Case style: Rys.L2x03S

External warehouse:

34000 pcs.

Quantity of pcs.	1000+ (Please wait for the order confirmation)
Net price (EUR)	0,0164

Add to comparison tool Add inquiry (RFQ)

Packaging:
1000

Place an order

Delivery within 4-7 business days.
Minimum order amount
must exceed 40 Euro.





Add inquiry (RFQ)

Item in delivery

Estimated date:
2026-09-20

Quantity of pcs.: 24000

• Parameters

Type of pin configuration:	2x03
Number of pins:	6
Type of connector:	Plug
Connector:	Pin strip
Mounting:	THT
Spatial orientation:	Straight
Terminal pitch [m]:	2,54mm
