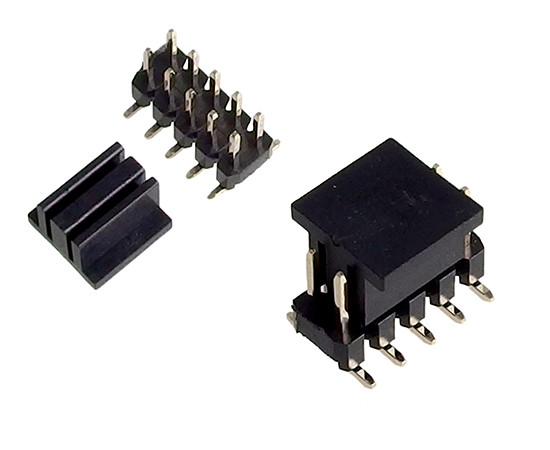

JVT2052H206T-2X05C-S JVT Pin header

Symbol Micros: Z L2x05T 2.0

105458

Z L2x05T 2.0

Contractor Symbol:

Case : Rys.L2x05T 2.0

Datasheet

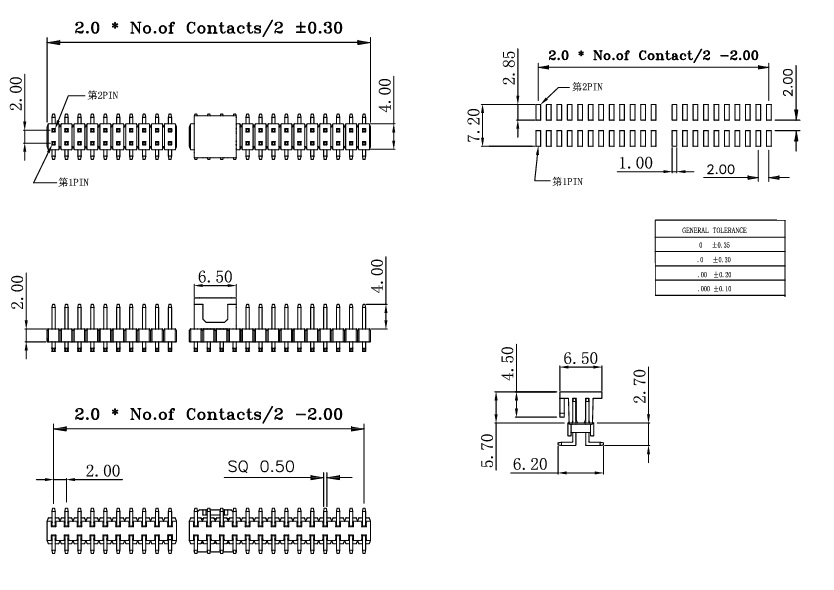

Technical drawing Add to favourites

male; dual row; 2x05pin; straight; p.2,00mm, SMD, gold contact; pick&place; equivalent. ZL266-10DG/PAD, PLMTD10S-TR

Parameters

Number of pins:	2x05
Connector:	Pin strip
Mounting:	SMD
Type of connector:	Male
Spatial orientation:	Straight
Terminal pitch:	2,0mm

All parameters





Add inquiry (RFQ)

Item available on request

• Parameters

Number of pins:	2x05
Connector:	Pin strip
Mounting:	SMD
Type of connector:	Male
Spatial orientation:	Straight
Terminal pitch:	2,0mm
