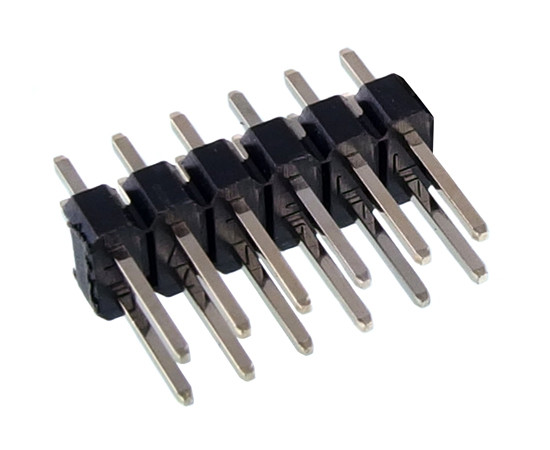

DS1021-2x6SF11-B CONNFLY Pin header

Symbol Micros: Z L2x06S

110712

Z L2x06S

Contractor Symbol:

Case : Rys.L2x06S

Datasheet

Technical drawing Add to favourites

male; dual row; 2x06pin, straight, p.2,54mm, PCB, gold contact; eqiv. ZL202-12G

Parameters

Type of pin configuration:	2x06
Number of pins:	12
Type of connector:	Plug
Connector:	Pin strip
Mounting:	THT
Spatial orientation:	Straight
Terminal pitch [m]:	2,54mm

All parameters





Add inquiry (RFQ)

Item available on request

• Parameters

Type of pin configuration:	2x06
Number of pins:	12
Type of connector:	Plug
Connector:	Pin strip
Mounting:	THT
Spatial orientation:	Straight
Terminal pitch [m]:	2,54mm
