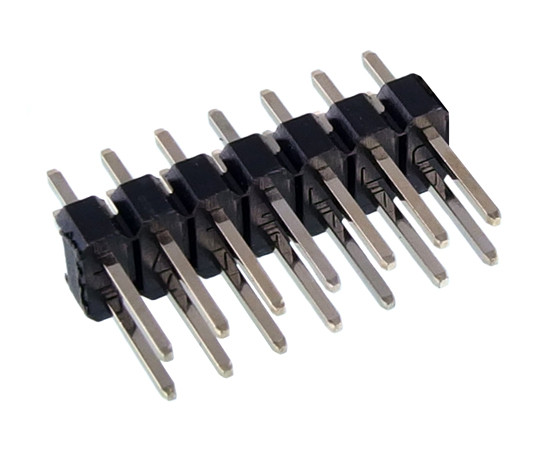

DS1021-2x7SF11-B CONNFLY Pin header

Symbol Micros: Z L2x07S

107263

Z L2x07S

Contractor Symbol:

Case : Rys.L2x07S

Datasheet

Technical drawing Add to favourites

male; dual row; 2x07pin, straight, p.2,54mm, PCB, gold contact; eqiv. ZL202-14G

Parameters

Number of pins:	2x07
Type:	Plug
Connector:	Pin strip
Mounting:	For printing
Spatial orientation:	Straight
Terminal pitch:	2,54mm

All parameters

Manufacturer:: CONNFLY ELECTRONIC Manufacturer part number: DS1021-2x7SF11-B Case style: Rys.L2x07S

External warehouse:

13000 pcs.

Quantity of pcs.	500+ (Need a significantly larger quantity? Ask for price).
Net price (EUR)	0,0288

Add inquiry (RFQ)

Packaging:
500

Place an order

Delivery within 4-7 business days.
Minimum order amount
must exceed 20 Euro.

• Parameters

Number of pins:	2x07
Type:	Plug
Connector:	Pin strip
Mounting:	For printing
Spatial orientation:	Straight
Terminal pitch:	2,54mm
