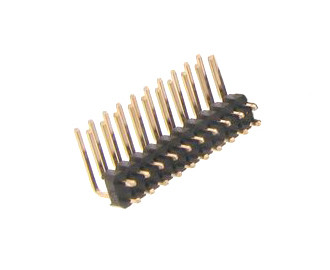

DS1022-2x10RF11-B CONNFLY Pin header

Symbol Micros: Z L2x10R

42967

Z L2x10R

Contractor Symbol:

Case : Rys.L2x10R

Datasheet

Technical drawing Add to favourites

male; dual row; 2x10pin, angled, p.2,54mm, PCB, gold contact; eqiv. ZL212-20KG

Parameters

Number of pins:	2x10
Type:	Plug
Connector:	Pin strip
Mounting:	For printing
Spatial orientation:	Angled
Terminal pitch:	2,54mm

All parameters





Add inquiry (RFQ)

Item available on request

• Parameters

Number of pins:	2x10
Type:	Plug
Connector:	Pin strip
Mounting:	For printing
Spatial orientation:	Angled
Terminal pitch:	2,54mm
