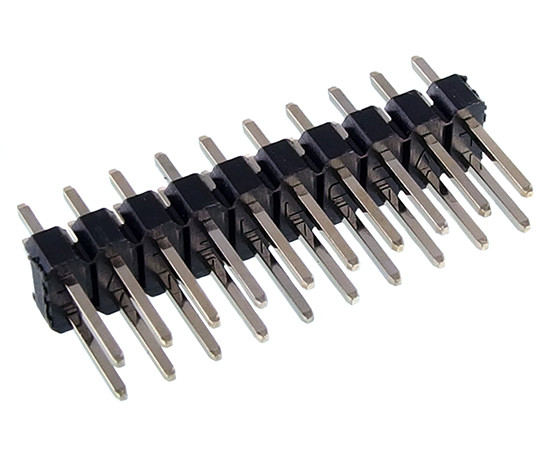

DS1021-2x10SF11-B CONNFLY Pin header

Symbol Micros: Z L2x10S

60274

Z L2x10S

Contractor Symbol:

Case : Rys.L2x10S

Datasheet

Technical drawing Add to favourites

male; dual row; 2x10pin, straight, p.2,54mm, PCB, gold contact; eqiv.ZL202-20G

Parameters

Number of pins:	2x10
Type:	Plug
Connector:	Pin strip
Mounting:	THT
Spatial orientation:	Straight
Terminal pitch [m]:	2,54mm

All parameters

Manufacturer:: CONNFLY (Zhenqin) Manufacturer part number: DS1021-2*10SF11-B RoHS Case style: Rys.L2x10S

In stock:

10400 pcs.

Quantity of pcs.	5+	30+	200+	1000+	2400+
Net price (EUR)	0,2132	0,0923	0,0573	0,0492	0,0473

Add to comparison tool Add inquiry (RFQ)

Packaging:
200/2400/9600 Quantity (multiple: 1)

- +

Manufacturer:: CONNFLY ELECTRONIC Manufacturer part number: DS1021-2*10SF11-B RoHS Case style: Rys.L2x10S Datasheet

In stock:

57565 pcs.

Quantity of pcs.	5+	30+	200+	1000+	2400+
Net price (EUR)	0,2132	0,0923	0,0573	0,0492	0,0473

Add to comparison tool Add inquiry (RFQ)

Packaging:
200/2400/9600 Quantity (multiple: 1)

- +

Manufacturer:: CONNFLY ELECTRONIC Manufacturer part number: DS1021-2x10SF11-B Case style: Rys.L2x10S

External warehouse:

18400 pcs.

Quantity of pcs.	200+ (Need a significantly larger quantity? Ask for price).
Net price (EUR)	0,0473

Add to comparison tool Add inquiry (RFQ)

Packaging:
200

Place an order

Delivery within 4-7 business days.
Minimum order amount
must exceed 20 Euro.

• Parameters

Number of pins:	2x10
Type:	Plug
Connector:	Pin strip
Mounting:	THT
Spatial orientation:	Straight
Terminal pitch [m]:	2,54mm
