Z L2x20R SMD

Symbol Micros: Z L2x20R SMD

43826

Z L2x20R SMD

Contractor Symbol:

Case : Rys.L2x20RSMD

Datasheet

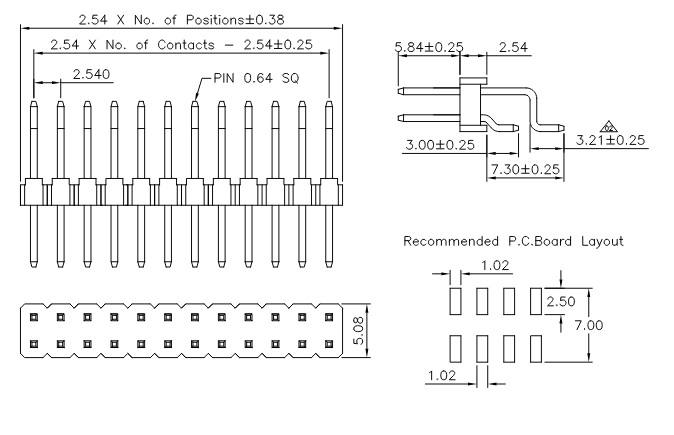

Technical drawing Add to favourites

pin header dual row 2x20pin, angled, p.2,54mm, SMD, gold contact

Parameters

Number of pins:	2x20
Type:	Plug
Connector:	Pin strip
Mounting:	SMD
Spatial orientation:	Angled
Terminal pitch:	2,54mm

All parameters





Add inquiry (RFQ)

Item available on request

• Parameters

Number of pins:	2x20
Type:	Plug
Connector:	Pin strip
Mounting:	SMD
Spatial orientation:	Angled
Terminal pitch:	2,54mm
