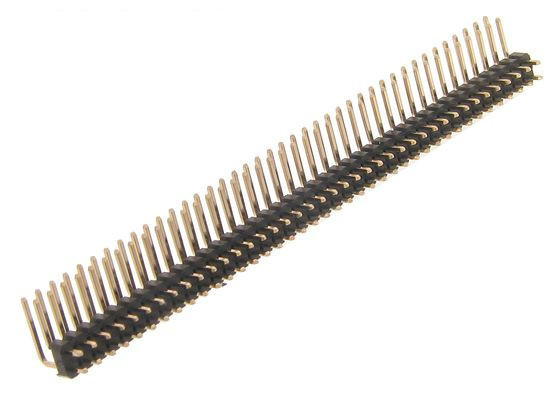

CH-254-PH-2-40-R-130/180-GO-A CONNECTAR Pin header

Symbol Micros: Z L2x40R

5557

Z L2x40R

Contractor Symbol:

Case : Rys.L2x40R

Datasheet

Add to favourites

male; dual row; 2x40pin, angled, p.2,54mm, PCB, gold contact; eqiv. PLD-80R, ZL212-80KG

Parameters

Type of pin configuration:	2x40
Number of pins:	80
Type of connector:	Plug
Connector:	Pin strip
Mounting:	THT
Spatial orientation:	Angled
Terminal pitch [m]:	2,54mm

All parameters

Manufacturer:: CONNECTAR Manufacturer part number: CH-254-PH-2-40-R-130/180-GO-A RoHS Case style: Rys.L2x40R Datasheet

In stock:

0 pcs.

Quantity of pcs.	2+	5+	10+	20+	77+
Net price (EUR)	0,5432	0,3929	0,3259	0,2820	0,2358

Add to comparison tool Add inquiry (RFQ)

Packaging:
77 Quantity (multiple: 1)

- +

Manufacturer:: CONNECTAR Manufacturer part number: CH-254-PH-2-40-R-130/180-GO-A RoHS Case style: Rys.L2x40R Datasheet

In stock:

100 pcs.

Quantity of pcs.	2+	5+	10+	30+	100+
Net price (EUR)	0,5386	0,3814	0,3120	0,2496	0,2154

Add to comparison tool Add inquiry (RFQ)

Packaging:
100 Quantity (multiple: 1)

- +





Add inquiry (RFQ)

Item in delivery

Estimated date:
2026-09-20

Quantity of pcs.: 2000

• Parameters

Type of pin configuration:	2x40
Number of pins:	80
Type of connector:	Plug
Connector:	Pin strip
Mounting:	THT
Spatial orientation:	Angled
Terminal pitch [m]:	2,54mm
