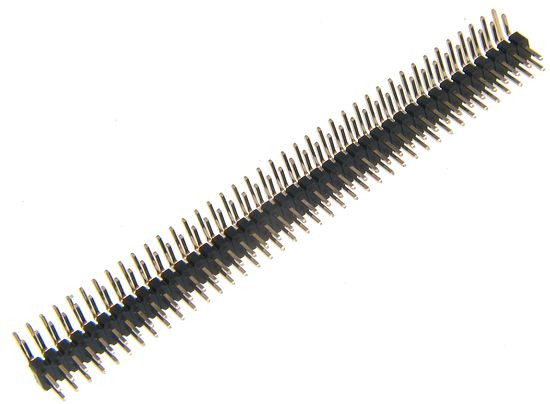

CH-200-PH-2-40-R-125/165-GO-A CONNECTAR Pin header

Symbol Micros: Z L2x40R 2.0

22050

Z L2x40R 2.0

Contractor Symbol:

Case : Rys.L2x40R 2.0

Datasheet

Technical drawing Add to favourites

male; dual row; 2x40pin; angled; p.2,00mm, PCB, gold contact; equivalent: PLMD80R-LF, ZL310-2X40P

Parameters

Type of pin configuration:	2x40
Number of pins:	80
Connector:	Pin strip
Mounting:	THT
Spatial orientation:	Angled
Type of connector:	Male
Terminal pitch [m]:	2,0mm

All parameters

Manufacturer:: CONNFLY ELECTRONIC Manufacturer part number:   Case style: Rys.L2x40R 2.0

In stock:

100 pcs.

Quantity of pcs.	2+	15+	100+	200+	1000+
Net price (EUR)	0,4434	0,2437	0,1901	0,1822	0,1732

Add to comparison tool Add inquiry (RFQ)

Packaging:
100/200 Quantity (multiple: 1)

- +

Manufacturer:: CONNECTAR Manufacturer part number:   Case style: Rys.L2x40R 2.0 Datasheet

In stock:

4621 pcs.

Quantity of pcs.	2+	5+	20+	80+	400+
Net price (EUR)	0,4434	0,3203	0,2305	0,1936	0,1771

Add to comparison tool Add inquiry (RFQ)

Packaging:
80/2000 Quantity (multiple: 1)

- +

• Parameters

Type of pin configuration:	2x40
Number of pins:	80
Connector:	Pin strip
Mounting:	THT
Spatial orientation:	Angled
Type of connector:	Male
Terminal pitch [m]:	2,0mm
