DS1029-01-20P8BVA h=29mm CONNFLY Double deck pin header

Symbol Micros: Z LDS1x20-29

45421

Z LDS1x20-29

Contractor Symbol:

Case : Rys.LDS1x20-29

Datasheet

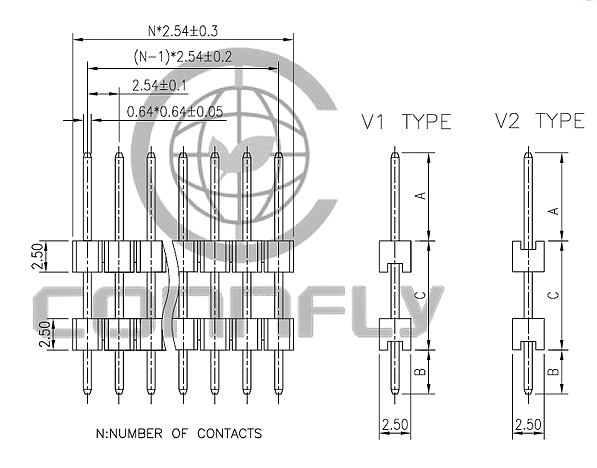

Technical drawing Add to favourites

male; straight; 1x20pin; pitch 2,54mm; dual insulator 29mm (19,2mm) eqiv. ZL2029-20

Parameters

Overall length:	29mm
Number of pins:	1x20
Manufacturer:	CONNFLY
Mounting:	THT
Terminal pitch:	2,54mm

All parameters





Add inquiry (RFQ)

Item available on request

• Parameters

Overall length:	29mm
Number of pins:	1x20
Manufacturer:	CONNFLY
Mounting:	THT
Terminal pitch:	2,54mm
