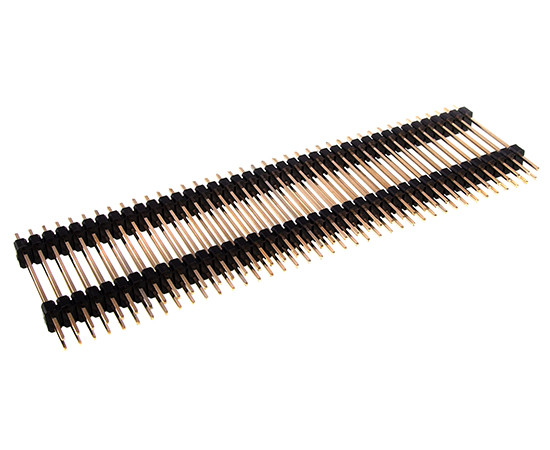

DS1029-04-2x40P8BVA-6 CONNFLY Double deck pin header

Symbol Micros: Z LDS2x40-29.5

77973

Z LDS2x40-29.5

Contractor Symbol:

Case : Rys.LDS2x40-29

Datasheet

Technical drawing Add to favourites

male; straight; 2x40pin; pitch 2,54mm; dual insulator 29,5mm

Parameters

Overall length:	29,5mm
Number of pins:	2x40
Manufacturer:	CONNFLY
Mounting:	THT
Terminal pitch [m]:	2,54mm

All parameters

Manufacturer:: CONNFLY ELECTRONIC Manufacturer part number: DS1029-04-2x40P8BVA6-B RoHS Case style: Rys.LDS2x40-29 Datasheet

In stock:

780 pcs.

Quantity of pcs.	1+	5+	25+	100+	250+
Net price (EUR)	1,3347	0,9314	0,7758	0,7216	0,7027

Add to comparison tool Add inquiry (RFQ)

Packaging:
25/250/1000 Quantity (multiple: 1)

- +

Manufacturer:: CONNFLY (Zhenqin) Manufacturer part number: DS1029-04-2x40P8BVA6-B RoHS Case style: Rys.LDS2x40-29

In stock:

5 pcs.

Quantity of pcs.	1+	5+	25+	100+	250+
Net price (EUR)	1,3347	0,9314	0,7758	0,7216	0,7027

Add to comparison tool Add inquiry (RFQ)

Packaging:
25/250/1000 Quantity (multiple: 1)

- +





Add inquiry (RFQ)

Item in delivery

Estimated date:
2026-09-30

Quantity of pcs.: 1000

• Parameters

Overall length:	29,5mm
Number of pins:	2x40
Manufacturer:	CONNFLY
Mounting:	THT
Terminal pitch [m]:	2,54mm
