DS1024-1x3R2 CONNFLY Socket pin strips

Symbol Micros: Z LG1x03R

27392

Z LG1x03R

Contractor Symbol:

Case : Rys.LG1x03R

Datasheet

Technical drawing Add to favourites

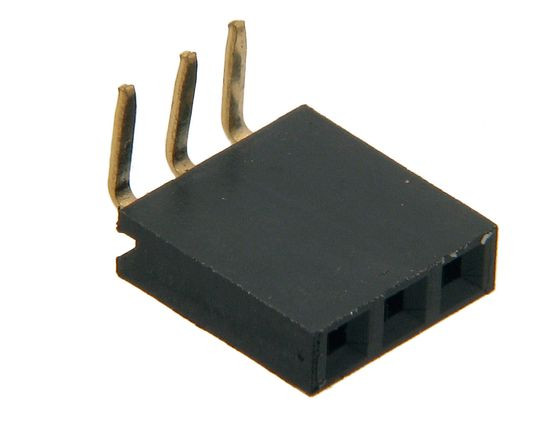

female; single row 1x3pin, angled, p.2.54mm, PCB, gold contact; eqiv. PB03R-LF, ZL263-3SG

Parameters

Type of pin configuration:	1x03
Number of pins:	3
Type of connector:	Socket
Connector:	Socket pin strips
Mounting:	THT
Spatial orientation:	Angled
Terminal pitch [m]:	2,54mm

All parameters

Manufacturer:: CONNFLY (Zhenqin) Manufacturer part number: DS1024-1*3R2 RoHS Case style: Rys.LG1x03R

In stock:

30 pcs.

Quantity of pcs.	5+	20+	74+	370+	2000+
Net price (EUR)	0,1387	0,0635	0,0376	0,0266	0,0231

Add to comparison tool Add inquiry (RFQ)

Packaging:
74/1000 Quantity (multiple: 1)

- +

Manufacturer:: CONNFLY ELECTRONIC Manufacturer part number: DS1024-1*3R2 RoHS Case style: Rys.LG1x03R Datasheet

In stock:

592 pcs.

Quantity of pcs.	5+	20+	74+	592+	2960+
Net price (EUR)	0,1526	0,0724	0,0442	0,0303	0,0277

Add to comparison tool Add inquiry (RFQ)

Packaging:
74/592 Quantity (multiple: 1)

- +

Manufacturer:: CONNFLY ELECTRONIC Manufacturer part number: DS1024-1X3R2 Case style: Rys.LG1x03R

External warehouse:

25752 pcs.

Quantity of pcs.	74+ (Please wait for the order confirmation)
Net price (EUR)	0,0277

Add to comparison tool Add inquiry (RFQ)

Packaging:
74

Place an order

Delivery within 4-7 business days.
Minimum order amount
must exceed 40 Euro.

• Parameters

Type of pin configuration:	1x03
Number of pins:	3
Type of connector:	Socket
Connector:	Socket pin strips
Mounting:	THT
Spatial orientation:	Angled
Terminal pitch [m]:	2,54mm
