DS1023-1x3S21 CONNFLY Socket pin strips

Symbol Micros: Z LG1x03S

16379

Z LG1x03S

Contractor Symbol:

Case : Rys.LG1x03S

Datasheet

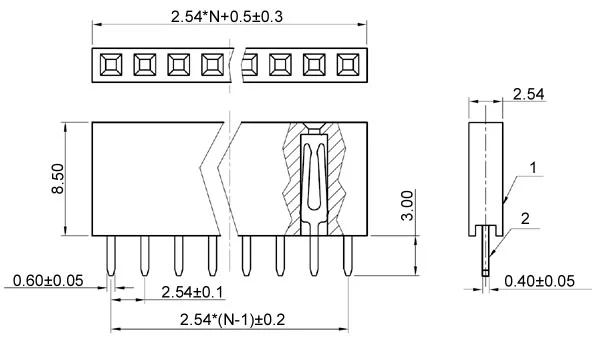

Technical drawing Add to favourites

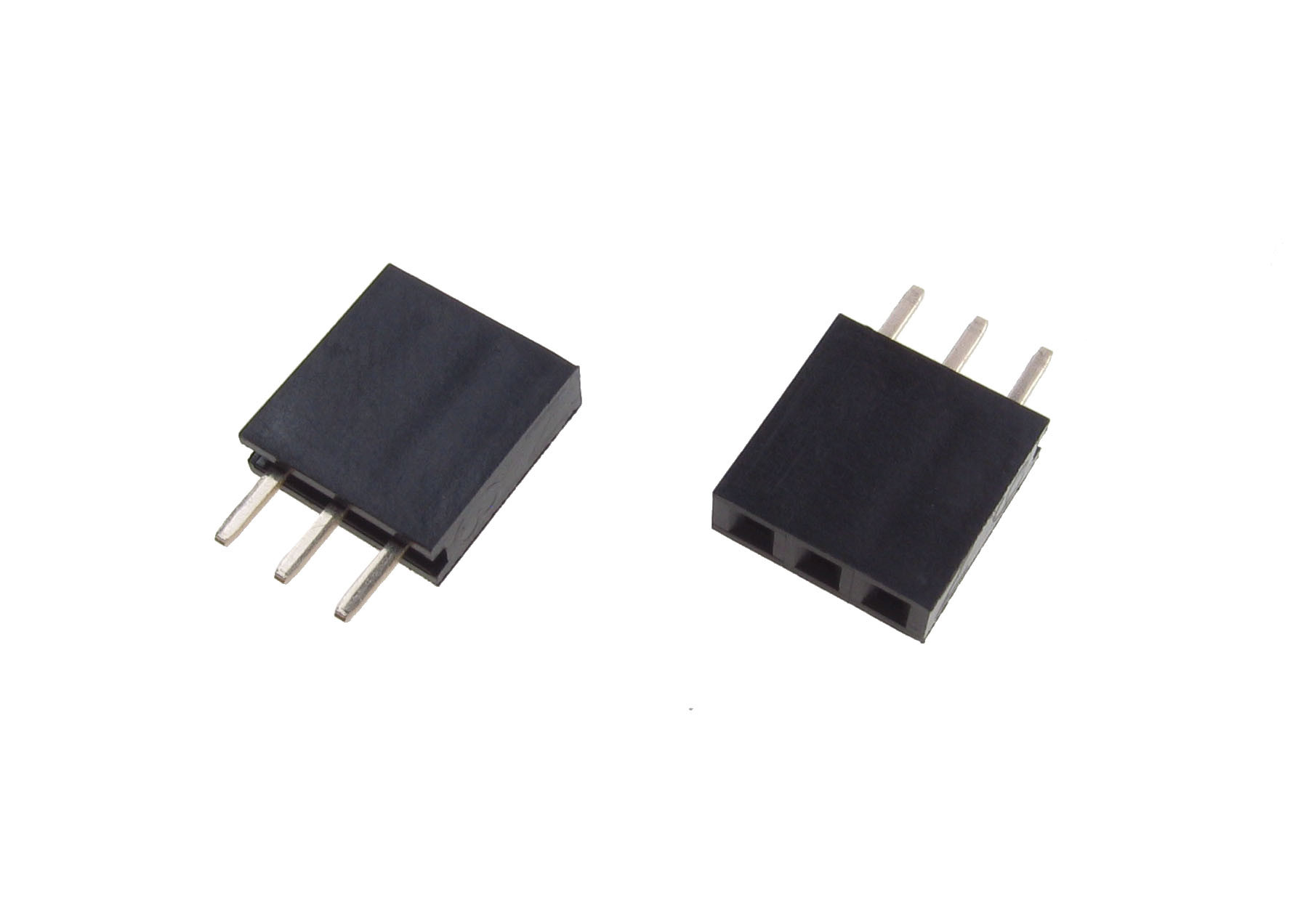

female; single row 1x3pin, staright, p.2.54mm, PCB, gold contact; eqiv. PB03S-LF, ZL262-3SG

Parameters

Number of pins:	1x03
Type:	Socket
Connector:	Socket pin strips
Mounting:	For printing
Spatial orientation:	Straight
Terminal pitch:	2,54mm

All parameters

Manufacturer:: CONNFLY (Zhenqin) Manufacturer part number: DS1023-1*3S21 RoHS Case style: Rys.LG1x03S

In stock:

66331 pcs.

Quantity of pcs.	10+	50+	200+	1000+	5000+
Net price (EUR)	0,0886	0,0353	0,0207	0,0153	0,0137

Add to comparison tool Add inquiry (RFQ)

Packaging:
1000/36000 Quantity (multiple: 10)

- +

Manufacturer:: CONNFLY (Zhenqin) Manufacturer part number: DS1023-1*3 S21 RoHS Case style: Rys.LG1x03S

In stock:

210 pcs.

Quantity of pcs.	10+	50+	200+	1000+	5000+
Net price (EUR)	0,0955	0,0379	0,0223	0,0164	0,0147

Add to comparison tool Add inquiry (RFQ)

Packaging:
1000 Quantity (multiple: 10)

- +

Manufacturer:: CONNFLY ELECTRONIC Manufacturer part number: DS1023-1x3S21 Case style: Rys.LG1x03S

External warehouse:

24000 pcs.

Quantity of pcs.	1000+ (Need a significantly larger quantity? Ask for price).
Net price (EUR)	0,0147

Add to comparison tool Add inquiry (RFQ)

Packaging:
1000

Place an order

Delivery within 4-7 business days.
Minimum order amount
must exceed 20 Euro.

• Parameters

Number of pins:	1x03
Type:	Socket
Connector:	Socket pin strips
Mounting:	For printing
Spatial orientation:	Straight
Terminal pitch:	2,54mm
