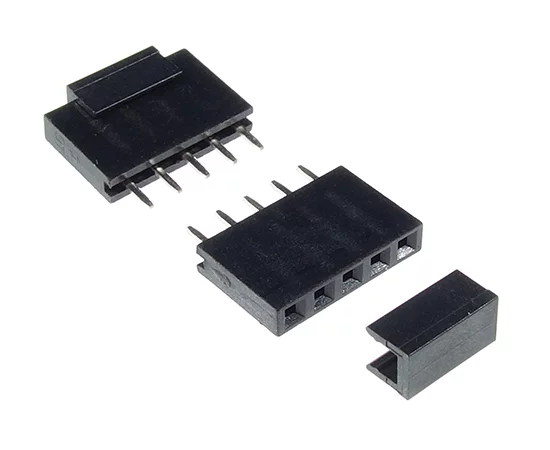

DS1023-1x5S21SR-9T CONNFLY Socket pin strips

Symbol Micros: Z LG1x05S-LCP

288697

Z LG1x05S-LCP

Contractor Symbol:

Case : Rys.LG1x05S-LCP

Datasheet

Technical drawing Add to favourites

female; single row 1x4pin, staright, p.2.54mm, PCB, gold contact; LCP material eqiv. PB05S-LF, ZL262-5SG

Parameters

Type of pin configuration:	1x05
Number of pins:	5
Type of connector:	Socket
Connector:	Socket pin strips
Mounting:	THT
Spatial orientation:	Straight
Terminal pitch [m]:	2,54mm

All parameters

Manufacturer:: CONNFLY (Zhenqin) Manufacturer part number: DS1023-1x5S21SR-9T RoHS Case style: Rys.LG1x05S-LCP

In stock:

9723 pcs.

Quantity of pcs.	5+	20+	100+	400+	2000+
Net price (EUR)	0,1859	0,0879	0,0491	0,0383	0,0338

Add to comparison tool Add inquiry (RFQ)

Packaging:
400/2000 Quantity (multiple: 1)

- +

• Parameters

Type of pin configuration:	1x05
Number of pins:	5
Type of connector:	Socket
Connector:	Socket pin strips
Mounting:	THT
Spatial orientation:	Straight
Terminal pitch [m]:	2,54mm
