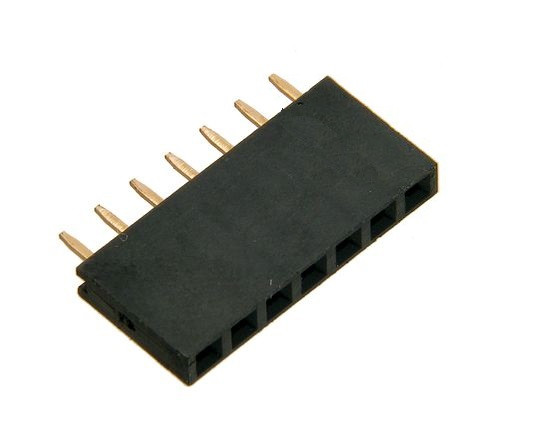

DS1023-1x7S21 CONNFLY Socket pin strips

Symbol Micros: Z LG1x07S

6577

Z LG1x07S

Contractor Symbol:

Case : Rys.LG1x07S

Datasheet

Technical drawing Add to favourites

female; single row 1x7pin, staright, p.2.54mm, PCB, gold contact; eqiv. PB07S-LF, ZL262-7SG

Parameters

Type of pin configuration:	1x07
Number of pins:	7
Type of connector:	Socket
Connector:	Socket pin strips
Mounting:	THT
Spatial orientation:	Straight
Terminal pitch [m]:	2,54mm

All parameters

Manufacturer:: CONNFLY ELECTRONIC Manufacturer part number: DS1023-1*7S21 RoHS Case style: Rys.LG1x07S Datasheet

In stock:

880 pcs.

Quantity of pcs.	5+	20+	100+	440+	1760+
Net price (EUR)	0,1500	0,0710	0,0395	0,0303	0,0273

Add to comparison tool Add inquiry (RFQ)

Packaging:
440 Quantity (multiple: 1)

- +

Manufacturer:: CONNFLY ELECTRONIC Manufacturer part number: DS1023-1x7S21 Case style: Rys.LG1x07S

External warehouse:

1040 pcs.

Quantity of pcs.	440+ (Please wait for the order confirmation)
Net price (EUR)	0,0273

Add to comparison tool Add inquiry (RFQ)

Packaging:
440

Place an order

Delivery within 4-7 business days.
Minimum order amount
must exceed 40 Euro.

• Parameters

Type of pin configuration:	1x07
Number of pins:	7
Type of connector:	Socket
Connector:	Socket pin strips
Mounting:	THT
Spatial orientation:	Straight
Terminal pitch [m]:	2,54mm
