DS1024-1x8R2 CONNFLY Socket pin strips

Symbol Micros: Z LG1x08R

6582

Z LG1x08R

Contractor Symbol:

Case : Rys.LG1x08R

Datasheet

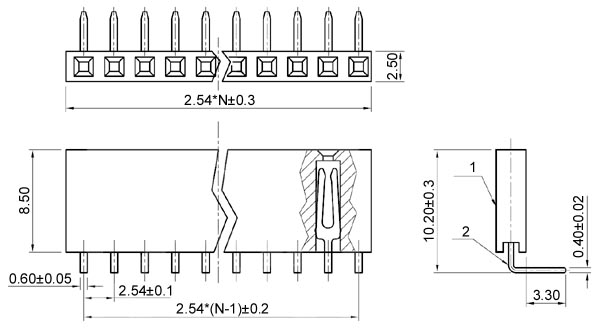

Technical drawing Add to favourites

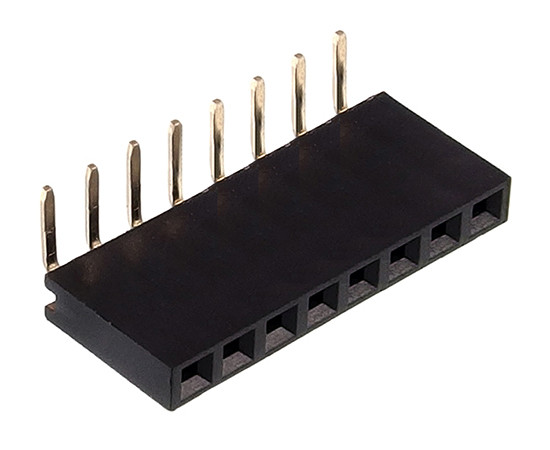

female; single row 1x8pin, angled, p.2.54mm, PCB, gold contact; eqiv. PB08R-LF, ZL263-8SG

Parameters

Type of pin configuration:	1x08
Number of pins:	8
Type of connector:	Socket
Connector:	Socket pin strips
Mounting:	THT
Spatial orientation:	Angled
Terminal pitch [mm]:	2,54mm

All parameters

Manufacturer:: CONNFLY ELECTRONIC Manufacturer part number: DS1024-1x8R2 RoHS Case style: Rys.LG1x08R Datasheet

In stock:

360 pcs.

Quantity of pcs.	5+	20+	100+	360+	1440+
Net price (EUR)	0,2322	0,1275	0,0840	0,0717	0,0662

Add to comparison tool Add inquiry (RFQ)

Packaging:
360 Quantity (multiple: 1)

- +

Manufacturer:: CONNFLY ELECTRONIC Manufacturer part number: DS1024-1x8R2 Case style: Rys.LG1x08R

External warehouse:

3000 pcs.

Quantity of pcs.	360+ (Please wait for the order confirmation)
Net price (EUR)	0,0662

Add to comparison tool Add inquiry (RFQ)

Packaging:
360

Place an order

Delivery within 4-7 business days.
Minimum order amount
must exceed 40 Euro.

• Parameters

Type of pin configuration:	1x08
Number of pins:	8
Type of connector:	Socket
Connector:	Socket pin strips
Mounting:	THT
Spatial orientation:	Angled
Terminal pitch [mm]:	2,54mm
