DS1026-01-1x8S8BV CONNFLY Socket pin strips

Symbol Micros: Z LG1x08S 2.0

33746

Z LG1x08S 2.0

Contractor Symbol:

Case : Rys.LG1x08S 2.0

Datasheet

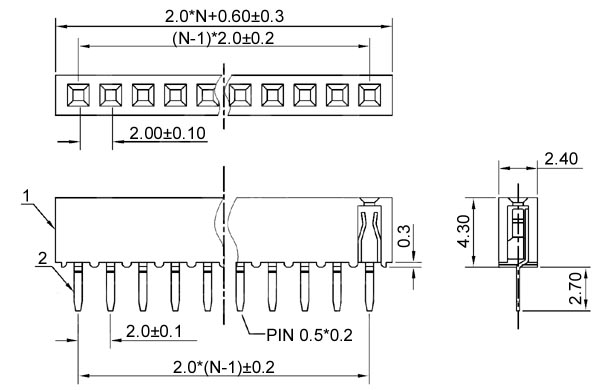

Technical drawing Add to favourites

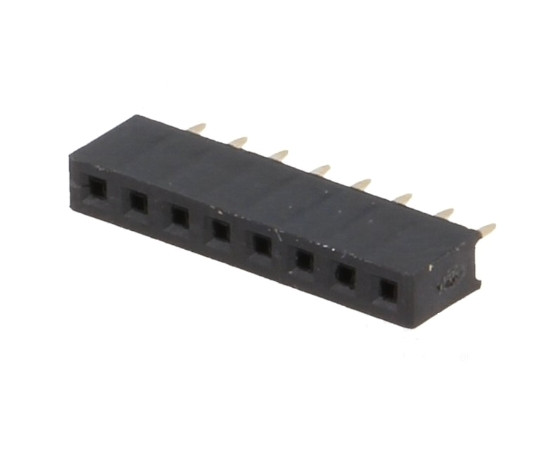

female; single row 1x8pin; staright; p.2,00mm, PCB, gold contact; equivalent: PBMS08S-LF, ZL265-8SG

Parameters

Type of pin configuration:	1x08
Number of pins:	8
Connector:	Socket pin strips
Mounting:	THT
Spatial orientation:	Straight
Type of connector:	Female
Terminal pitch [m]:	2,0mm

All parameters





Add inquiry (RFQ)

Item available on request

• Parameters

Type of pin configuration:	1x08
Number of pins:	8
Connector:	Socket pin strips
Mounting:	THT
Spatial orientation:	Straight
Type of connector:	Female
Terminal pitch [m]:	2,0mm
