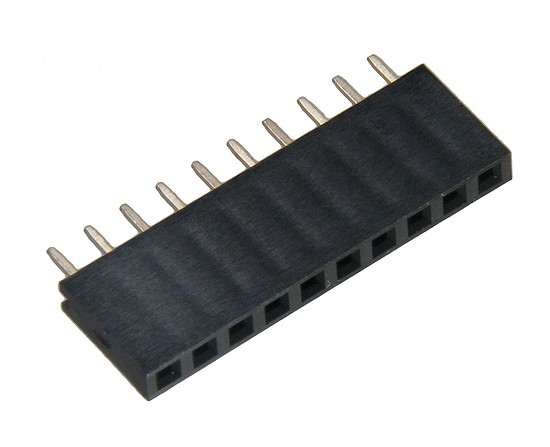

DS1023-1x10S21 CONNFLY Socket pin strips

Symbol Micros: Z LG1x10S

6583

Z LG1x10S

Contractor Symbol:

Case : Rys.LG1x10S

Datasheet

Add to favourites

female; single row 1x10pin, staright, p.2.54mm, PCB, gold contact; eqiv. PB10S-LF, ZL262-10SG

Parameters

Number of pins:	1x10
Type:	Socket
Connector:	Socket pin strips
Mounting:	For printing
Spatial orientation:	Straight
Terminal pitch:	2,54mm

All parameters

Manufacturer:: CONNFLY ELECTRONIC Manufacturer part number: DS1023-1x10S21 RoHS Case style: Rys.LG1x10S Datasheet

In stock:

41026 pcs.

Quantity of pcs.	5+	20+	100+	320+	1280+
Net price (EUR)	0,2040	0,0960	0,0533	0,0423	0,0371

Add to comparison tool Add inquiry (RFQ)

Packaging:
320/11520 Quantity (multiple: 1)

- +





Add inquiry (RFQ)

Item in delivery

Estimated date:
2025-11-20

Quantity of pcs.: 34560





Add inquiry (RFQ)

Item in delivery

Estimated date:
2026-02-01

Quantity of pcs.: 23040





Add inquiry (RFQ)

Item in delivery

Estimated date:
2025-12-15

Quantity of pcs.: 23040

• Parameters

Number of pins:	1x10
Type:	Socket
Connector:	Socket pin strips
Mounting:	For printing
Spatial orientation:	Straight
Terminal pitch:	2,54mm
