DS1023-1x12S21 CONNFLY Socket pin strips

Symbol Micros: Z LG1x12S

122120

Z LG1x12S

Contractor Symbol:

Case : Rys.LG1x12S

Datasheet

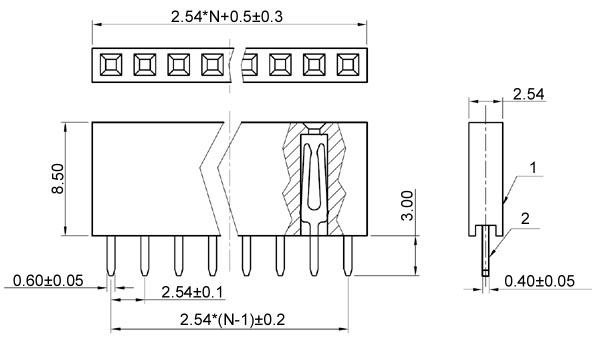

Technical drawing Add to favourites

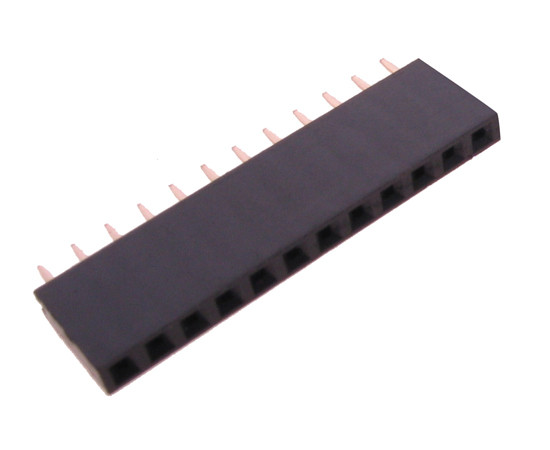

female; single row 1x12pin, staright, p.2.54mm, PCB, gold contact; eqiv. ZL262-12SG

Parameters

Number of pins:	1x12
Type:	Socket
Connector:	Socket pin strips
Mounting:	For printing
Spatial orientation:	Straight
Terminal pitch:	2,54mm

All parameters

Manufacturer:: CONNFLY ELECTRONIC Manufacturer part number: DS1023-1x12S21 Case style: Rys.LG1x12S

External warehouse:

2260 pcs.

Quantity of pcs.	240+ (Need a significantly larger quantity? Ask for price).
Net price (EUR)	0,0245

Add inquiry (RFQ)

Packaging:
240

Place an order

Delivery within 4-7 business days.
Minimum order amount
must exceed 20 Euro.

• Parameters

Number of pins:	1x12
Type:	Socket
Connector:	Socket pin strips
Mounting:	For printing
Spatial orientation:	Straight
Terminal pitch:	2,54mm
