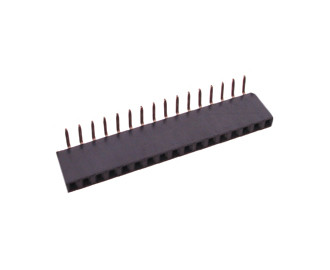

DS1024-1x16R2 CONNFLY Socket pin strips

Symbol Micros: Z LG1x16R

6586

Z LG1x16R

Contractor Symbol:

Case : Rys.LG1x16R

Datasheet

Technical drawing Add to favourites

female; single row 1x16pin, angled, p.2.54mm, PCB, gold contact; eqiv. PB16R-LF, ZL263-16SG

Parameters

Number of pins:	1x16
Type:	Socket
Connector:	Socket pin strips
Mounting:	For printing
Spatial orientation:	Angled
Terminal pitch:	2,54mm

All parameters

Manufacturer:: CONNFLY ELECTRONIC Manufacturer part number: DS1024-1x16R2 Case style: Rys.LG1x16R

External warehouse:

2800 pcs.

Quantity of pcs.	200+ (Need a significantly larger quantity? Ask for price).
Net price (EUR)	0,0713

Add inquiry (RFQ)

Packaging:
200

Place an order

Delivery within 4-7 business days.
Minimum order amount
must exceed 20 Euro.

• Parameters

Number of pins:	1x16
Type:	Socket
Connector:	Socket pin strips
Mounting:	For printing
Spatial orientation:	Angled
Terminal pitch:	2,54mm
