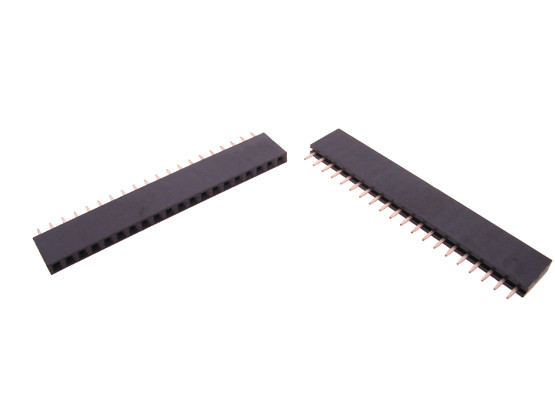

DS1023-1x20S21 CONNFLY Socket pin strips

Symbol Micros: Z LG1x20S

5569

Z LG1x20S

Contractor Symbol:

Case : Rys.LG1x20S

Datasheet

Add to favourites

female; single row 1x20pin, staright, p.2.54mm, PCB, gold contact; eqiv. PB20S-LF, ZL262-20SG

Parameters

Type of pin configuration:	1x20
Number of pins:	20
Type of connector:	Socket
Connector:	Socket pin strips
Mounting:	THT
Spatial orientation:	Straight
Terminal pitch [m]:	2,54mm

All parameters

Manufacturer:: CONNFLY ELECTRONIC Manufacturer part number: DS1023-1*20S21 RoHS Case style: Rys.LG1x20S Datasheet

In stock:

1030 pcs.

Quantity of pcs.	5+	30+	160+	800+	3200+
Net price (EUR)	0,2774	0,1342	0,0947	0,0828	0,0790

Add to comparison tool Add inquiry (RFQ)

Packaging:
160/5760 Quantity (multiple: 1)

- +

Manufacturer:: CONNFLY ELECTRONIC Manufacturer part number: DS1023-1x20S21 Case style: Rys.LG1x20S

External warehouse:

11360 pcs.

Quantity of pcs.	160+ (Please wait for the order confirmation)
Net price (EUR)	0,0790

Add to comparison tool Add inquiry (RFQ)

Packaging:
160

Place an order

Delivery within 4-7 business days.
Minimum order amount
must exceed 40 Euro.

• Parameters

Type of pin configuration:	1x20
Number of pins:	20
Type of connector:	Socket
Connector:	Socket pin strips
Mounting:	THT
Spatial orientation:	Straight
Terminal pitch [m]:	2,54mm
