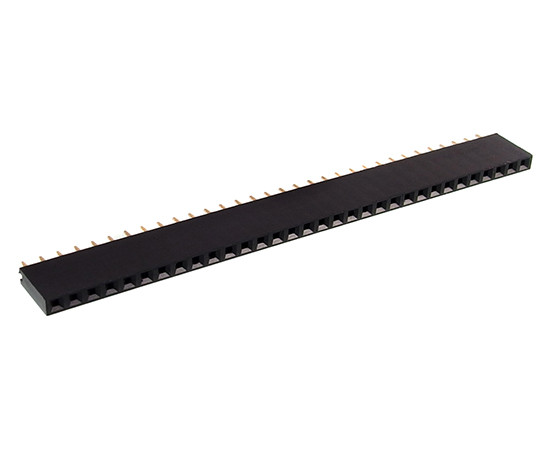

DS1023-1x32S21 CONNFLY Socket pin strips

Symbol Micros: Z LG1x32S

6587

Z LG1x32S

Contractor Symbol:

Case : Rys.LG1x32S

Datasheet

Technical drawing Add to favourites

female; single row 1x32pin, staright, p.2.54mm, PCB, gold contact; eqiv. PB32S

Parameters

Type of pin configuration:	1x32
Number of pins:	32
Type of connector:	Socket
Connector:	Socket pin strips
Mounting:	THT
Spatial orientation:	Straight
Terminal pitch [m]:	2,54mm

All parameters

Manufacturer:: CONNFLY ELECTRONIC Manufacturer part number: DS1023-1*32S21 RoHS Case style: Rys.LG1x32S Datasheet

In stock:

1600 pcs.

Quantity of pcs.	3+	15+	80+	400+	1600+
Net price (EUR)	0,2610	0,1486	0,1103	0,0983	0,0945

Add to comparison tool Add inquiry (RFQ)

Packaging:
80/1600 Quantity (multiple: 1)

- +

Manufacturer:: CONNFLY (Zhenqin) Manufacturer part number: DS1023-1x32S01 RoHS Case style: Rys.LG1x32S

In stock:

3 pcs.

Quantity of pcs.	3+	15+	80+	640+	2560+
Net price (EUR)	0,2610	0,1491	0,1110	0,0971	0,0945

Add to comparison tool Add inquiry (RFQ)

Packaging:
80/1600 Quantity (multiple: 1)

- +

• Parameters

Type of pin configuration:	1x32
Number of pins:	32
Type of connector:	Socket
Connector:	Socket pin strips
Mounting:	THT
Spatial orientation:	Straight
Terminal pitch [m]:	2,54mm
