DS1024-1x40R2 CONNFLY Socket pin strips

Symbol Micros: Z LG1x40R

5577

Z LG1x40R

Contractor Symbol:

Case : Rys.LG1x40R

Datasheet

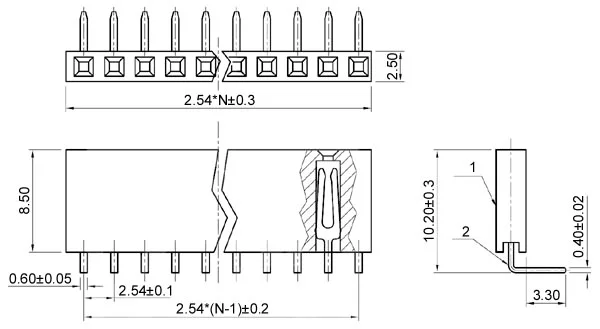

Technical drawing Add to favourites

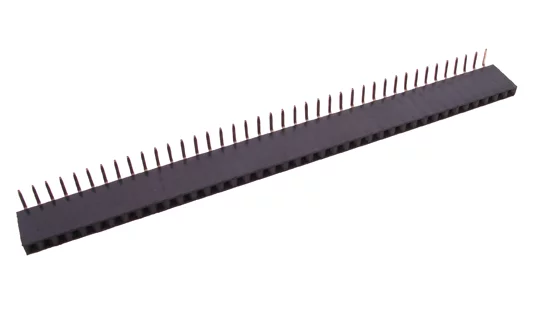

female; single row 1x40pin, angled, p.2.54mm, PCB, gold contact; eqiv. PB-40R, ZL263-40SG

Parameters

Number of pins:	1x40
Type:	Socket
Connector:	Socket pin strips
Mounting:	THT
Spatial orientation:	Angled
Terminal pitch [m]:	2,54mm

All parameters

Manufacturer:: CONNFLY (Zhenqin) Manufacturer part number: DS1024-1*40R2 RoHS Case style: Rys.LG1x40R

In stock:

2474 pcs.

Quantity of pcs.	3+	15+	80+	400+	2000+
Net price (EUR)	0,4262	0,2534	0,1913	0,1712	0,1643

Add to comparison tool Add inquiry (RFQ)

Packaging:
80 Quantity (multiple: 1)

- +

Manufacturer:: CONNFLY ELECTRONIC Manufacturer part number: DS1024-1*40R2 RoHS Case style: Rys.LG1x40R Datasheet

In stock:

241 pcs.

Quantity of pcs.	3+	15+	80+	400+	2000+
Net price (EUR)	0,4262	0,2534	0,1913	0,1712	0,1643

Add to comparison tool Add inquiry (RFQ)

Packaging:
80 Quantity (multiple: 1)

- +

Manufacturer:: CONNFLY ELECTRONIC Manufacturer part number: DS1024-1x40R2 Case style: Rys.LG1x40R

External warehouse:

920 pcs.

Quantity of pcs.	80+ (Please wait for the order confirmation)
Net price (EUR)	0,1915

Add to comparison tool Add inquiry (RFQ)

Packaging:
80

Place an order

Delivery within 4-7 business days.
Minimum order amount
must exceed 40 Euro.

• Parameters

Number of pins:	1x40
Type:	Socket
Connector:	Socket pin strips
Mounting:	THT
Spatial orientation:	Angled
Terminal pitch [m]:	2,54mm
