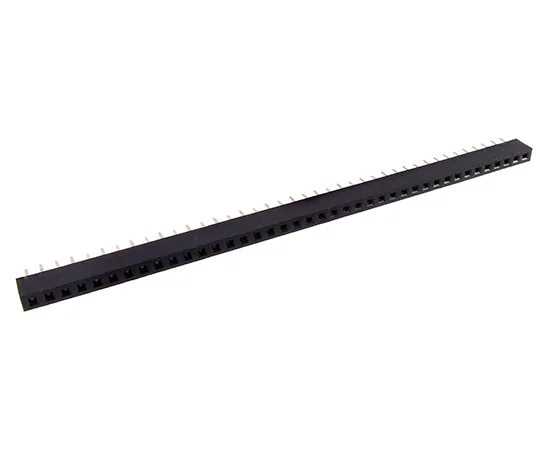

DS1026-01-1x40S8BV CONNFLY Socket pin strips

Symbol Micros: Z LG1x40S 2.0

16706

Z LG1x40S 2.0

Contractor Symbol:

Case : Rys.LG1x40S 2.0

Datasheet

Technical drawing Add to favourites

female; single row 1x40pin; staright; p.2,00mm, PCB, gold contact; equivalent: PBMS40S-LF,

Parameters

Number of pins:	1x40
Connector:	Socket pin strips
Mounting:	For printing
Type of connector:	Female
Spatial orientation:	Straight
Terminal pitch:	2,0mm

All parameters





Add inquiry (RFQ)

Item available on request





Add inquiry (RFQ)

Item in delivery

Estimated date:
2025-11-01

Quantity of pcs.: 2520

• Parameters

Number of pins:	1x40
Connector:	Socket pin strips
Mounting:	For printing
Type of connector:	Female
Spatial orientation:	Straight
Terminal pitch:	2,0mm
