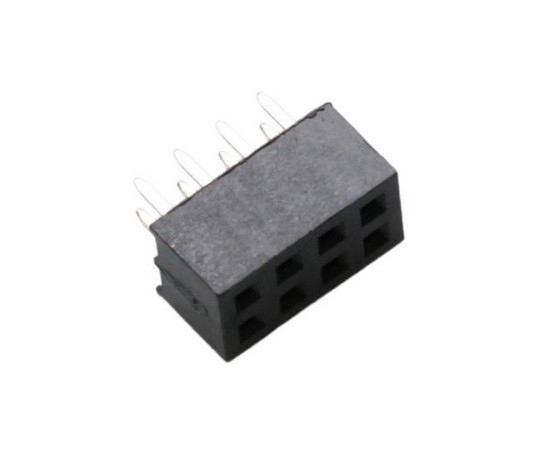

DS1026-05-2x4S8BV CONNFLY Socket pin strips

Symbol Micros: Z LG2x04S 2.0

538193

Z LG2x04S 2.0

Contractor Symbol:

Case : Rys.LG2x04S 2.0

Datasheet

Technical drawing Add to favourites

female; dual row 2x4pin; staright; p.2,00mm, PCB, gold contact; width: 4,6mm equivalent: ZL265-8DG

Parameters

Type of pin configuration:	2x04
Number of pins:	8
Connector:	Socket pin strips
Mounting:	THT
Spatial orientation:	Straight
Type of connector:	Female
Terminal pitch [mm]:	2,0mm

All parameters

Manufacturer:: CONNFLY ELECTRONIC Manufacturer part number: DS1026-05-2x4S8BV RoHS Case style: Rys.LG2x04S 2.0 Datasheet

In stock:

532 pcs.

Quantity of pcs.	5+	20+	67+	532+	2660+
Net price (EUR)	0,2777	0,1532	0,1097	0,0845	0,0792

Add to comparison tool Add inquiry (RFQ)

Packaging:
67/532 Quantity (multiple: 1)

- +

Manufacturer:: CONNFLY ELECTRONIC Manufacturer part number: DS1026-05-2x4S8BV Case style: Rys.LG2x04S 2.0

External warehouse:

2066 pcs.

Quantity of pcs.	67+ (Please wait for the order confirmation)
Net price (EUR)	0,0792

Add to comparison tool Add inquiry (RFQ)

Packaging:
67

Place an order

Delivery within 4-7 business days.
Minimum order amount
must exceed 40 Euro.

• Parameters

Type of pin configuration:	2x04
Number of pins:	8
Connector:	Socket pin strips
Mounting:	THT
Spatial orientation:	Straight
Type of connector:	Female
Terminal pitch [mm]:	2,0mm
