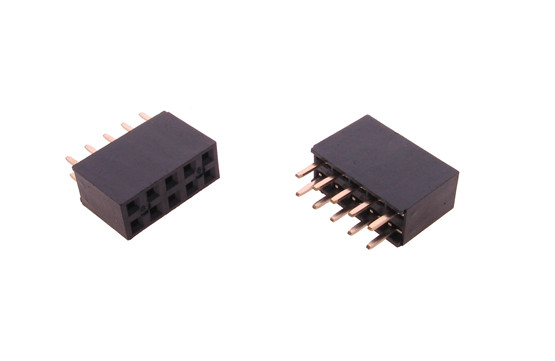

DS1023-2*5S21 CONNFLY Socket pin strips

Symbol Micros: Z LG2x05S

10857

Z LG2x05S

Contractor Symbol:

Case : Rys.LG2x05S

Datasheet

Add to favourites

female; dual row 2x5pin, staright, p.2.54mm, PCB, gold contact; eqiv. PBD-10S, ZL262-10DG

Parameters

Number of pins:	2x05
Type:	Socket
Connector:	Socket pin strips
Mounting:	For printing
Spatial orientation:	Straight
Terminal pitch:	2,54mm

All parameters

Manufacturer:: CONNFLY ELECTRONIC Manufacturer part number: DS1023-2X05S21 RoHS Case style: Rys.LG2x05S Datasheet

In stock:

21600 pcs.

Quantity of pcs.	5+	20+	100+	300+	1000+
Net price (EUR)	0,2054	0,1125	0,0737	0,0636	0,0587

Add to comparison tool Add inquiry (RFQ)

Packaging:
300/10800 Quantity (multiple: 1)

- +

Manufacturer:: CONNFLY ELECTRONIC Manufacturer part number: DS1023-2X5S21 RoHS Case style: Rys.LG2x05S Datasheet

In stock:

5675 pcs.

Quantity of pcs.	5+	20+	100+	300+	1000+
Net price (EUR)	0,2054	0,1125	0,0737	0,0636	0,0587

Add to comparison tool Add inquiry (RFQ)

Packaging:
300/10800 Quantity (multiple: 1)

- +





Add inquiry (RFQ)

Item in delivery

Estimated date:
2025-11-01

Quantity of pcs.: 32400





Add inquiry (RFQ)

Item in delivery

Estimated date:
2026-01-15

Quantity of pcs.: 32400

• Parameters

Number of pins:	2x05
Type:	Socket
Connector:	Socket pin strips
Mounting:	For printing
Spatial orientation:	Straight
Terminal pitch:	2,54mm
