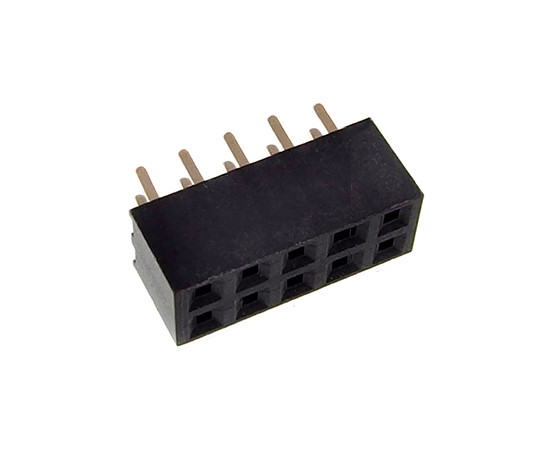

DS1026-05-2x5S8BV CONNFLY Socket pin strips

Symbol Micros: Z LG2x05S 2.0

33747

Z LG2x05S 2.0

Contractor Symbol:

Case : Rys.LG2x05S 2.0

Datasheet

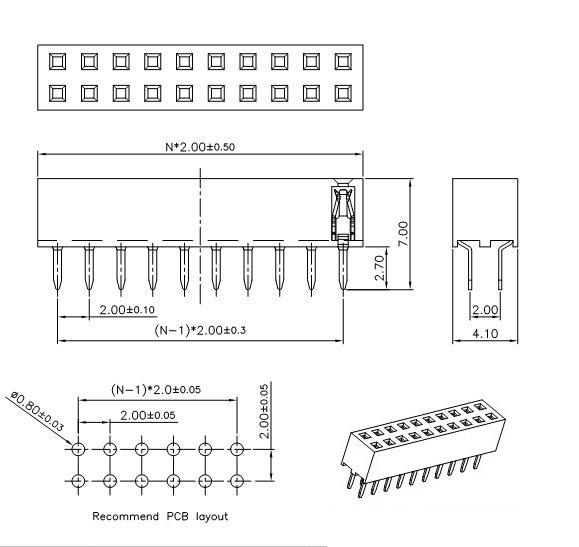

Technical drawing Add to favourites

female; dual row 2x5pin; staright; p.2,00mm, PCB, gold contact; width: 4,6mm equivalent: ZL265-10DG

Parameters

Type of pin configuration:	2x05
Number of pins:	10
Connector:	Socket pin strips
Mounting:	THT
Spatial orientation:	Straight
Type of connector:	Female
Terminal pitch [mm]:	2,0mm

All parameters

Manufacturer:: CONNFLY ELECTRONIC Manufacturer part number:   Case style: Rys.LG2x05S 2.0 Datasheet

In stock:

432 pcs.

Quantity of pcs.	5+	20+	54+	270+	1458+
Net price (EUR)	0,2595	0,1432	0,1072	0,0826	0,0744

Add to comparison tool Add inquiry (RFQ)

Packaging:
54/1458 Quantity (multiple: 1)

- +

Manufacturer:: CONNFLY ELECTRONIC Manufacturer part number: DS1026-05-2x5S8BV Case style: Rys.LG2x05S 2.0

External warehouse:

20378 pcs.

Quantity of pcs.	54+ (Please wait for the order confirmation)
Net price (EUR)	0,0744

Add to comparison tool Add inquiry (RFQ)

Packaging:
54

Place an order

Delivery within 4-7 business days.
Minimum order amount
must exceed 40 Euro.

• Parameters

Type of pin configuration:	2x05
Number of pins:	10
Connector:	Socket pin strips
Mounting:	THT
Spatial orientation:	Straight
Type of connector:	Female
Terminal pitch [mm]:	2,0mm
