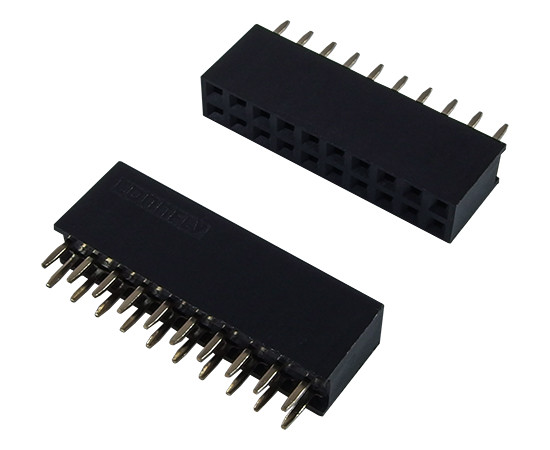

DS1023-02-2X10S21 CONNFLY Socket pin strips

Symbol Micros: Z LG2x10SB

380791

Z LG2x10SB

Contractor Symbol:

Case : Rys.LG2x10S

Datasheet

Technical drawing Add to favourites

female; dual row 2x10pin, staright, p.2.54mm, PCB, nickel+gold flash for box header mating

Parameters

Type of pin configuration:	2x10
Number of pins:	20
Type of connector:	Socket
Connector:	Socket pin strips
Mounting:	THT
Spatial orientation:	Straight
Terminal pitch [mm]:	2,54mm

All parameters





Add inquiry (RFQ)

Item available on request

• Parameters

Type of pin configuration:	2x10
Number of pins:	20
Type of connector:	Socket
Connector:	Socket pin strips
Mounting:	THT
Spatial orientation:	Straight
Terminal pitch [mm]:	2,54mm
