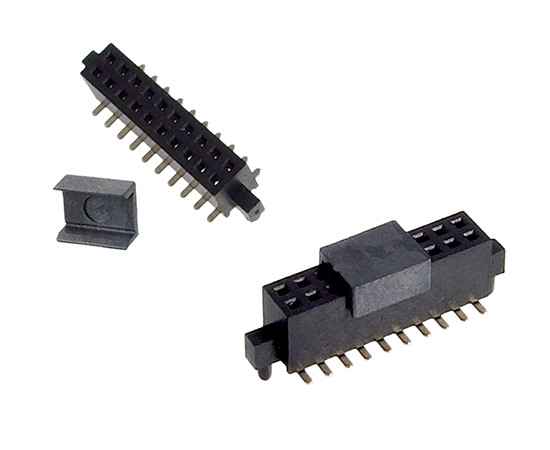

JVT1270H436T-2X10PC-S JVT Female header dual row

Symbol Micros: Z LG2x10T 1.27

105457

Z LG2x10T 1.27

Contractor Symbol:

Case : Rys.LG2x10T 1.27

Datasheet

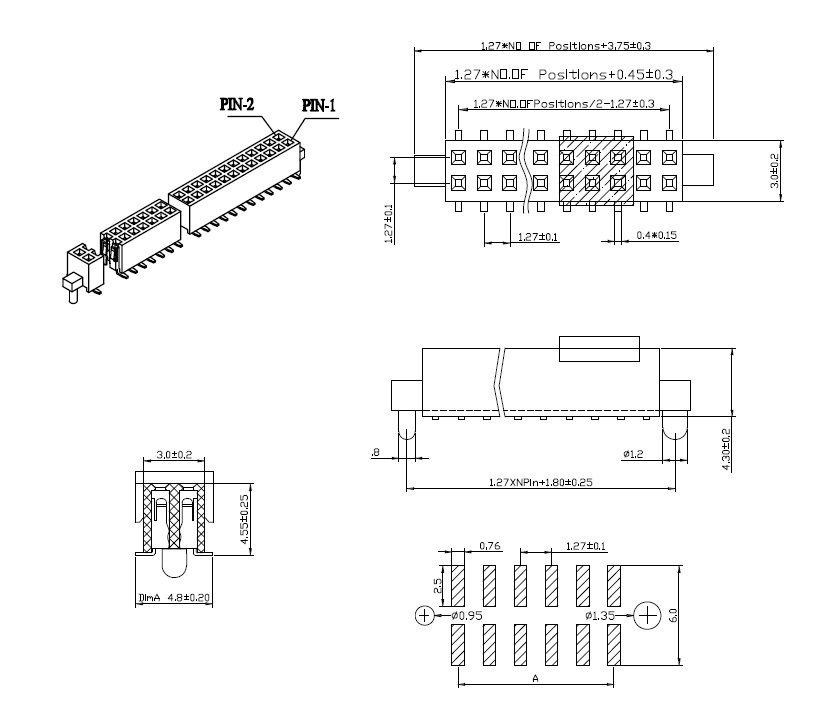

Technical drawing Add to favourites

2x10pin, straight SMT, gold contact, p.1.27mm

Parameters

Type of pin configuration:	2x10
Number of pins:	20
Connector:	Socket pin strips
Mounting:	SMD
Spatial orientation:	Straight
Type of connector:	Female
Terminal pitch [mm]:	1,27mm

All parameters

Manufacturer:: JVT Manufacturer part number: JVT1270H436T-2X10PC-S RoHS Case style: Rys.LG2x10T 1.27 Datasheet

In stock:

800 pcs.

Quantity of pcs.	2+	10+	50+	200+	800+
Net price (EUR)	0,7490	0,4735	0,3734	0,3392	0,3256

Add to comparison tool Add inquiry (RFQ)

Packaging:
800 Quantity (multiple: 1)

- +

Manufacturer:: JVT Manufacturer part number: JVT1270H436T-2X10PC-S RoHS Case style: Rys.LG2x10T 1.27 Datasheet

In stock:

60 pcs.

Quantity of pcs.	2+	10+	50+	200+	1000+
Net price (EUR)	0,7080	0,4485	0,3529	0,3210	0,3073

Add to comparison tool Add inquiry (RFQ)

Packaging:
200 Quantity (multiple: 1)

- +

• Parameters

Type of pin configuration:	2x10
Number of pins:	20
Connector:	Socket pin strips
Mounting:	SMD
Spatial orientation:	Straight
Type of connector:	Female
Terminal pitch [mm]:	1,27mm
