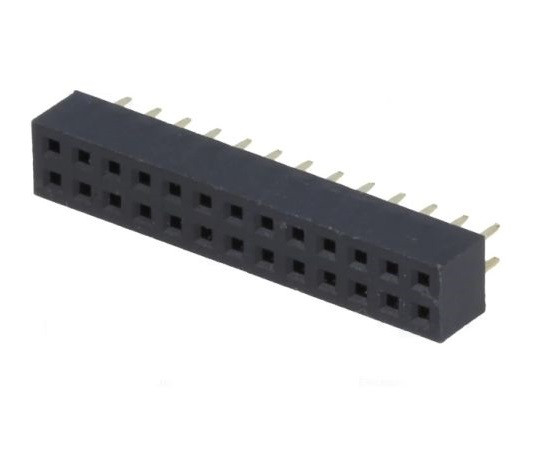

DS1026-05-2x13S8BV CONNFLY Socket pin strips

Symbol Micros: Z LG2X13S 2.0

76061

Z LG2X13S 2.0

Contractor Symbol:

Case : Rys.LG2x13S 2,0

Datasheet

Technical drawing Add to favourites

female; dual row 2x13pin; staright; p.2,00mm, PCB, gold contact; width: 4,6mm equivalent: ZL265-26DG

Parameters

Type of pin configuration:	2x13
Number of pins:	26
Connector:	Socket pin strips
Mounting:	THT
Spatial orientation:	Straight
Type of connector:	Female
Terminal pitch [mm]:	2,0mm

All parameters

Manufacturer:: CONNFLY (Zhenqin) Manufacturer part number:   Case style: Rys.LG2x13S 2,0

In stock:

866 pcs.

Quantity of pcs.	3+	21+	105+	420+	2100+
Net price (EUR)	0,2552	0,1351	0,1059	0,0968	0,0929

Add to comparison tool Add inquiry (RFQ)

Packaging:
21/420/5040 Quantity (multiple: 1)

- +

• Parameters

Type of pin configuration:	2x13
Number of pins:	26
Connector:	Socket pin strips
Mounting:	THT
Spatial orientation:	Straight
Type of connector:	Female
Terminal pitch [mm]:	2,0mm
